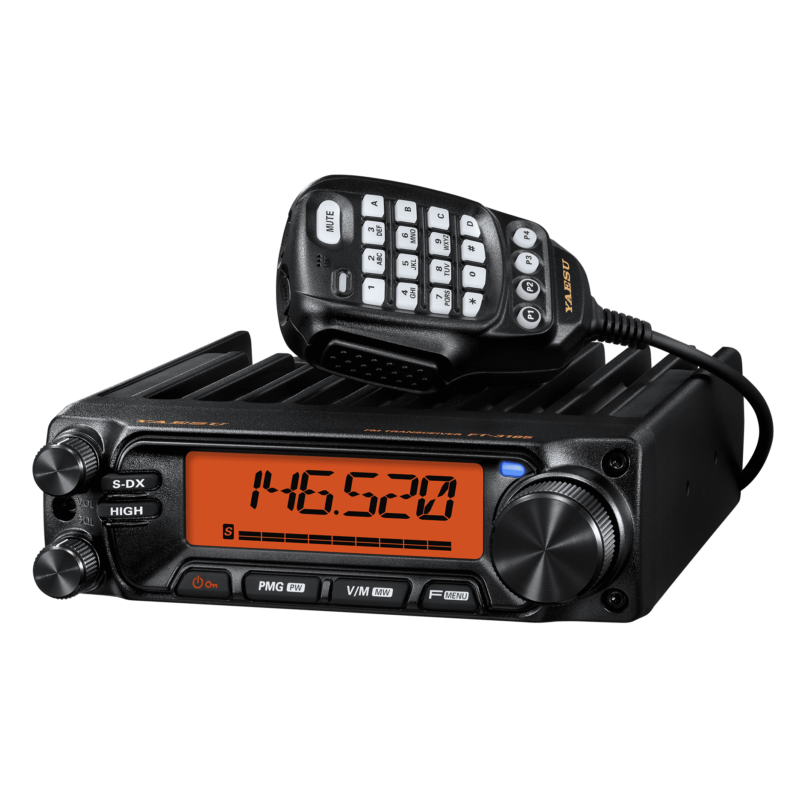

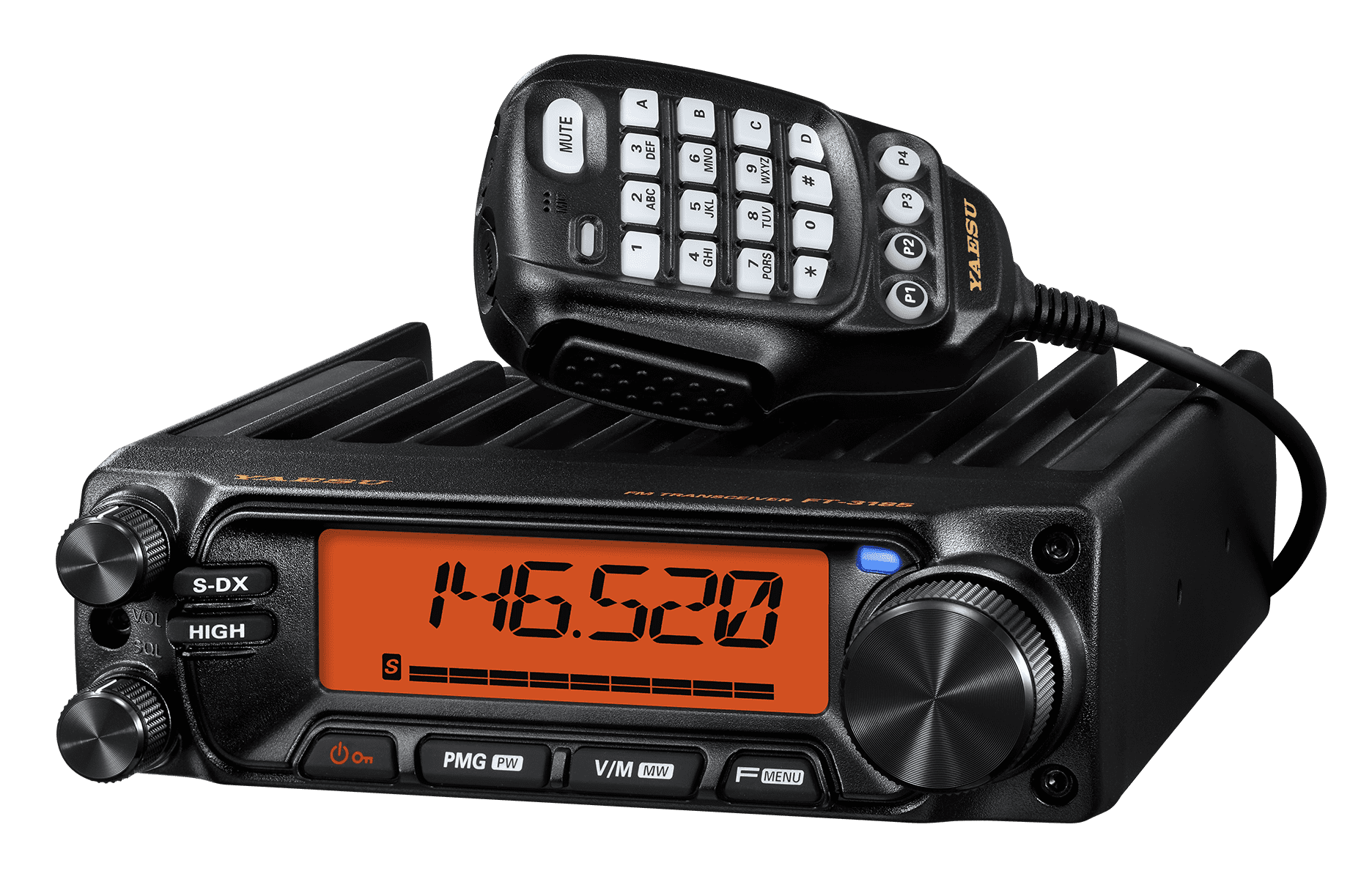

Yaesu FT-3185E ASP VHF / FM mobile transceiver 85W / with 5 year warranty

The Yaesu FT-3185E ASP delivers dependable, high-performing 85W of transmit power. The Massive Heatsink with no cooling fan ensures reliable solid 85W RF power (selectable 85W / 50W / 20W / 5W). The Super-DX function increases the receiver sensitivity and improves weak signal reception. The new ASP: Audio Digital Signal Processing Unit is also activated when the Super-DX key is pressed. The Super-DX with the ASP ensures reliable audio quality for weak signals and expands the communication range.

The remarkable and convenient features of the new FT-3185E ASP are:

• PMG (Primary Memory Group)

Up to 5 VFO or Memory Channel frequencies may be assigned to the PMG (Primary Memory Group). The reception status of the PMG channels is displayed in real time with a bar graph in the PMG screen. The AUTO or MANUAL mode is switchable by pressing and holding the Main VFO knob during PMG operation. The AUTO mode shows the received channel. Transmit is automatically moved to the received channel. In the MANUAL mode, transmit and receive stay on the manually selected channel. When there is no signal on the manually selected channel, the bar graph will display the activity of the other PMG channels.

• CFL (Customized Function List)

Up to 9 frequently used functions from the 44 Menus can be registered and be easily called.

Some other convenient features of the Yaesu FT-3185E ASP are: Large-capacity of 221 Memory channels with Alpha-numeric 6-character labels, Keypad entry of operating frequencies from the supplied DTMF microphone, Versatile Scan features such as Preferential Memory Scan, VFO Scan, Priority Channel Scan (Dual Watch), CTCSS / DCS Encode/Decode, Separate Transmit offset Frequency Memories, RF squelch, EPCS (Enhanced Paging & Code Squelch) operation, Display Illumination Adjustment, Automatic Power-Off (APO), Time-Out Timer (TOT), Busy Channel Lock-out (BCLO).

SDX+ASP: Super-DX RF Front-End Design and Audio Digital Signal Processor Increases the receiver sensitivity and improves reception of weak signals +

85W Fan-less: Massive Heatsink with no cooling fan ensures reliable solid 85W RF output power

PMG: Often used frequencies (up to 5ch) can be registered and then easily monitored in the Primary Memory Group function

New Features

Massive Heatsink ensures 85W RF Power: The Massive Heatsink with no cooling fan ensures reliable solid 85W RF power (selectable 85W/50W/20W/5W).

CFL (Customized Function List): Up to 9 frequently used functions from the 44 Menus can be registered and be easily called.

Super-DX and ASP: Audio Digital Signal Processor: The new Super-DX function increases the receiver sensitivity, and improves weak signal reception. The new ASP is also activated when the S-DX key is pressed. The new Super-DX with the ASP ensures reliable audio quality for weak signals and expands the communication range.

PMG (Primary Memory Group): Up to 5 frequencies may be stored to the PMG (Primary Memory Group). The activity of the PMG channels is displayed in real time with a bar graph in the PMG screen. The AUTO or MANUAL mode is switchable by pressing and holding the Main VFO knob during PMG operation. In the AUTO mode, the receive and transmit channel will automatically change to the received signal channel. In the MANUAL mode, transmit and receive stay on the manually selected channel. When there is no signal on the manually selected channel, the bar graph will display when other PMG channels has an activity.

User-Programmable Microphone Keys: Four Programmable keys (P1-P4) on the microphone allow one-touch access to your favorite ommand functions, The microphone function commands replicate the corresponding front panel functions.

Memory channels with Alpha-numeric labels: The 200 memories, one "HC channel and 10 sets of memories, with 6-chara alpha-numeric lables, for identification.

Yaesu FT-3185E ASP Advanced Features:

• Keyboard entry of operating frequencies from the Supplied DTMF Microphone SSM-85D
• Versatile Scan features: Preferential Memory Scan, Programmable memory scan, VFO scan, Priority Channel Scan (Dual Watch)
• CTCSS (50 tones) and DCS (104 codes)
• Encode/Decode, with split Tone and DCS
• Encode-only capability
• Expanded receiver coverage: 136-174MHz
• Separate Transmit offset Frequency
• Memories
• Memory-Only Mode
• RF squelch
• DTMF Auto-dialer (9 channel) Operation
• Automatic Repeater Shift
• Tone/DCS Search Scanning
• DCS Code Inversion

Yaesu FT-3185E ASP Convenience Features:

• EPCS (Enhanced Paging & Code Squelch)
• Operation Display Illumination Adjustment
• Automatic Power-Off (APO)
• Time-Out Timer (TOT)
• Busy Channel Lock-Out (BCLO)
• CTCSS/DCS Bell Operation
• Keylock Feature

Yaesu FT-3185E ASP mobile transceiver package includes:

• Yaesu FT-3185E EU (CE) VHF / FM  mobile transceiver
• Yaesu SSM-85D Microphone
• Yaesu MMB-83 Mobile Mounting Bracket
• DC Power Cord w/Fuse
• Spare Fuse 20A
• Standing Foot
• Operating Manual

Radio amateur transceivers can only transmit within amateur bands in factory default settings. Frequency extension is extra cost, you have to order separately!
