Yaesu FT-3165E ASP VHF / FM amateur mobile transceiver 65W / with 5 year warranty

Yaesu Yaesu FT-3165E ASP VHF / FM amateur mobile transceiver 65W 144MHz - With the New Evolving Super-DX and Audio Digital Signal Processor

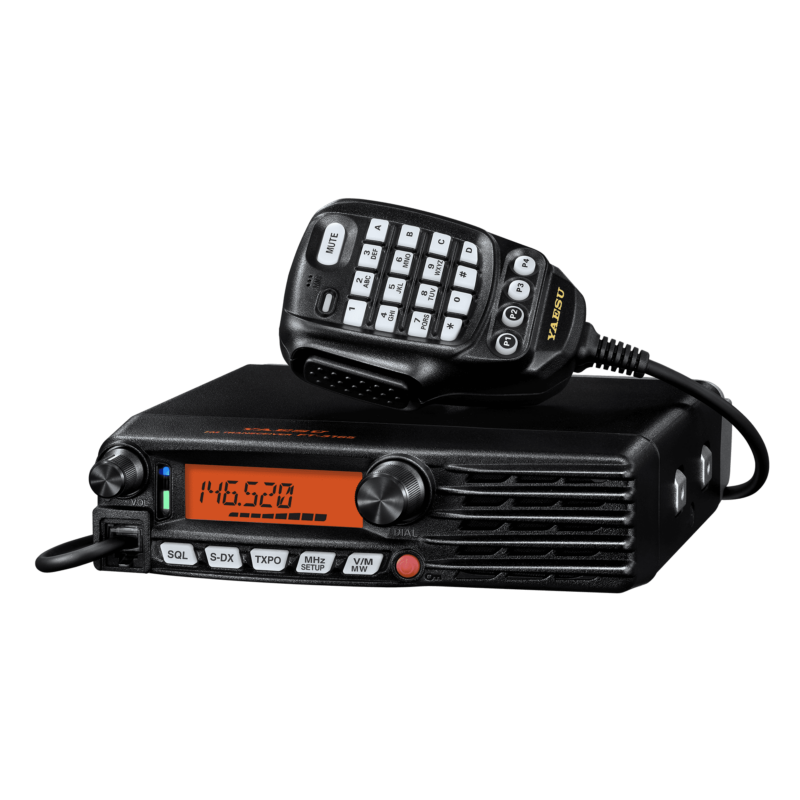

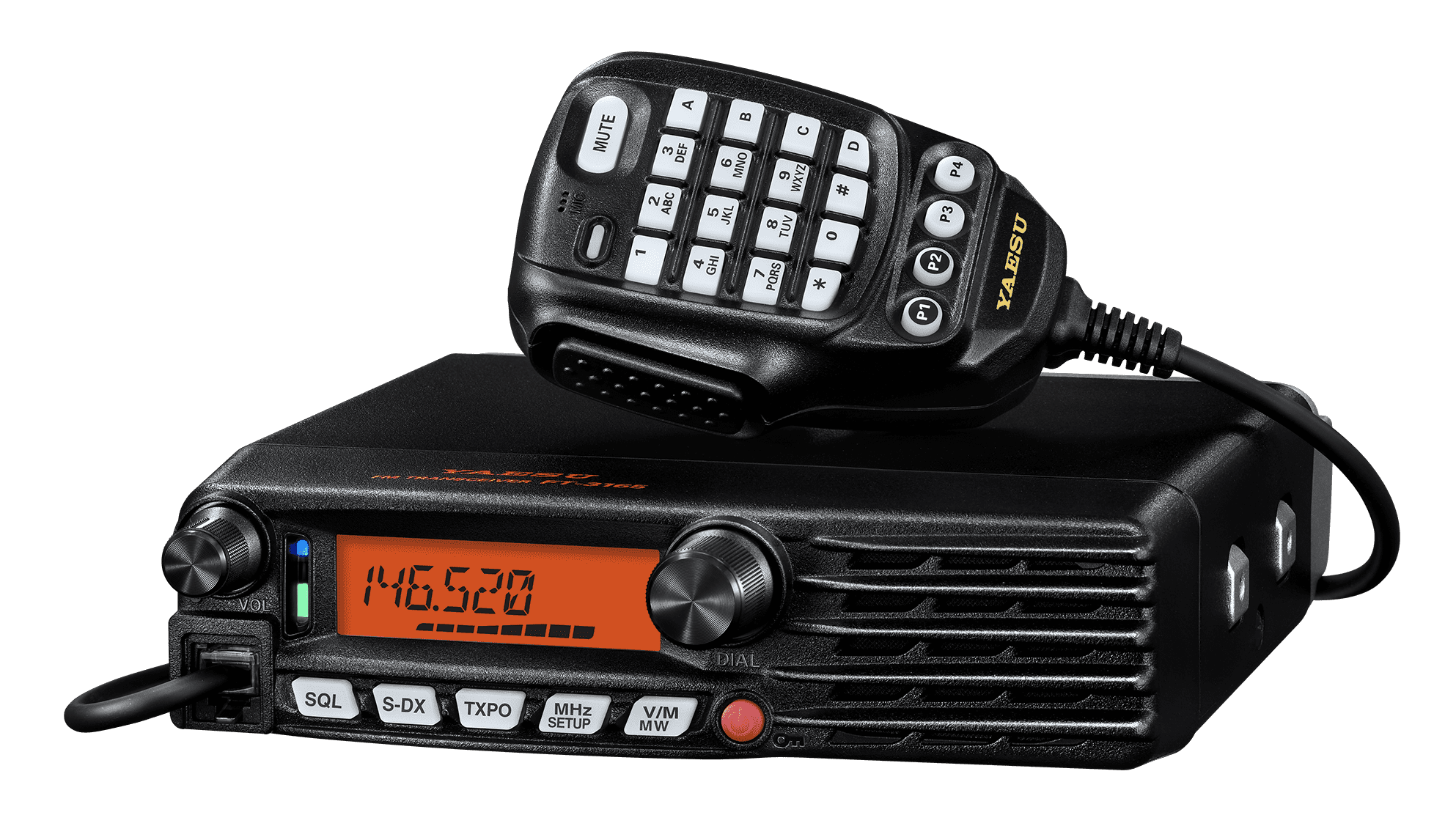

The Yaesu Yaesu FT-3165E ASP is a compact 2-meter mobile transceiver with solid basic features configuration and mechanical toughness. The power output is 65W (selectable 65W / 30W / 5W) and its efficient cooling system with the FACC: Funnel Air-Convection Conductor (Wind Tunnel) ensures stable and reliable power. New front speaker provides 5W of loud audio and has been tuned for improved sound quality. With the optional MLS-100 external speaker, the Yaesu Yaesu FT-3165E ASP transceiver supports uninterrupted communication even in a noisy environment.

The Super-DX function increases the receiver sensitivity and improves weak signal reception. The new ASP: Audio Digital Signal Processing Unit is also activated when the Super-DX key is pressed. The Super-DX with the ASP ensures comfortable audio quality of weak signals and expands the communication range. Some other convenient features of the Yaesu FT-3165E ASP are: Large-capacity of 220 Memory channels with Alpha-numeric 8-character labels, Keypad entry of operating frequencies from the supplied DTMF microphone, Versatile Scan features such as Preferential Memory Scan, VFO Scan, Priority Channel Scan (Dual Watch), CTCSS / DCS Encode/Decode, Separate Transmit offset Frequency Memories, RF squelch, EPCS (Enhanced Paging & Code Squelch) operation, Display Illumination Adjustment, Automatic Power-Off (APO), Time-Out Timer (TOT), Busy Channel Lock-out (BCLO).

Yaesu Yaesu FT-3165E ASP mobile radio new features:

Super-DX and ASP: Audio Digital Signal Processor: The new Super-DX function increases the receiver sensitivity, and improves weak signal reception. The new ASP is also activated when the S-DX key is pressed. The new Super-DX with the ASP ensures reliable audio quality for weak signals and expands the communication range.

New 5 W Front Loud Speaker: Redesigned front speaker provides 5 watts of loud audio, the Yaesu FT-3165E ASP speaker has been tuned for improved sound quality.

The optional Yaesu MLS-100 external speaker is available for support in noisy field operation.

65 Watts Stable High-Power Output with FACC: The compact 2-meter Mobile Trans- ceiver is built with the Yaesu legend- ary mechanical toughness. The FACC: Funnel Air-Convection Con- ductor (Wind Tunnel) draws cool air through the wide-open front air intake and directs it to the final amplifier area and out the rear cooling fan. This efficient cooling system ensures stable high output power for continu- ous long-distance communications.

User-Programmable Microphone Keys: Four Programmable keys (P1-P4) on the microphone allow one-touch access to your favorite command functions. The microphone function commands replicate the corresponding front panel functions.

Available Key functions: SQL OFF, HOME, WX CH, CD SRCH, SCAN, T CALL, TX POWER, REV, DW, Menu Items #1 to #44

Yaesu Yaesu FT-3165E ASP mobile radio Advanced Features:

• Keyboard entry of operating frequencies from the Supplied DTMF Microphone SSM-85D
• Versatile Scan features: Preferential Memory Scan, Programmable memory scan, VFO scan, Priority Channel Scan (Dual Watch)
• CTCSS (50 tones) and DCS (104 codes) Encode/ Decode, with split Tone and DCS Encode-only capability
• Expanded frequency coverage with frequency extension up to 136-174 MHz (the frequency unlock must be purchased separately, look for the frequency extension in the related products section under the product description).
• Separate Transmit offset Frequency Memories
• Memory-Only Mode
• RF squelch
• DTMF Auto-dialer (10 channel) Operation
• Automatic Repeater Shift
• Tone/DCS Search Scanning
• Memory channels with Alpha-numeric labels: The 199 memories, one "HOME" channel for Favorite frequencies and 10 sets of PMS memories, with 8-character alpha-numeric abels, for easy recognition.

Yaesu Yaesu FT-3165E ASP mobile radio convenience features:

• EPCS (Enhanced Paging & Code Squelch) Operation
• Automatic Power-Off (APO)
• Time-Out Timer (TOT)
• Display Illumination Adjustment
• Busy Channel Lock-Out (BCLO)
• CTCSS/DCS Bell Operation
• DCS Code Inversion
• Keylock Feature
• Cloning

Yaesu Yaesu FT-3165E ASP mobile transceiver box includes:

• Yaesu FT-3165E (CE) VHF / FM mobile transceiver
• Yaesu SSM-85D DTMF Microphone
• Mobile Mounting Bracket (Attachment screw set)
• DX power cable w/Fuse
• Spare fuse (25 A) (20 A, European version)
• USB cable

Radio amateur transceivers can only transmit within amateur bands in factory default settings. Frequency extension is extra cost, you have to order separately!
