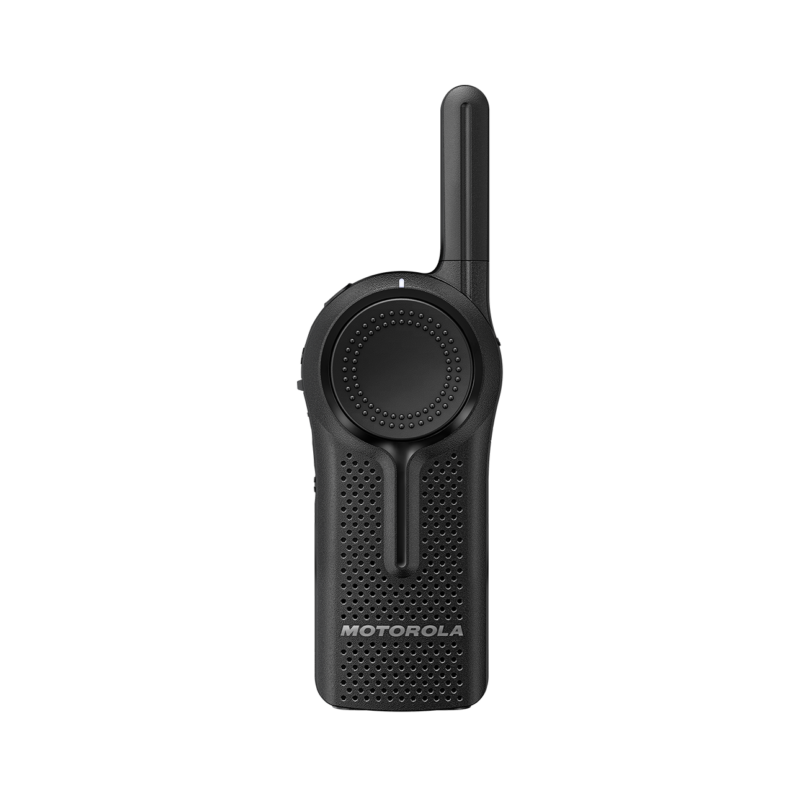

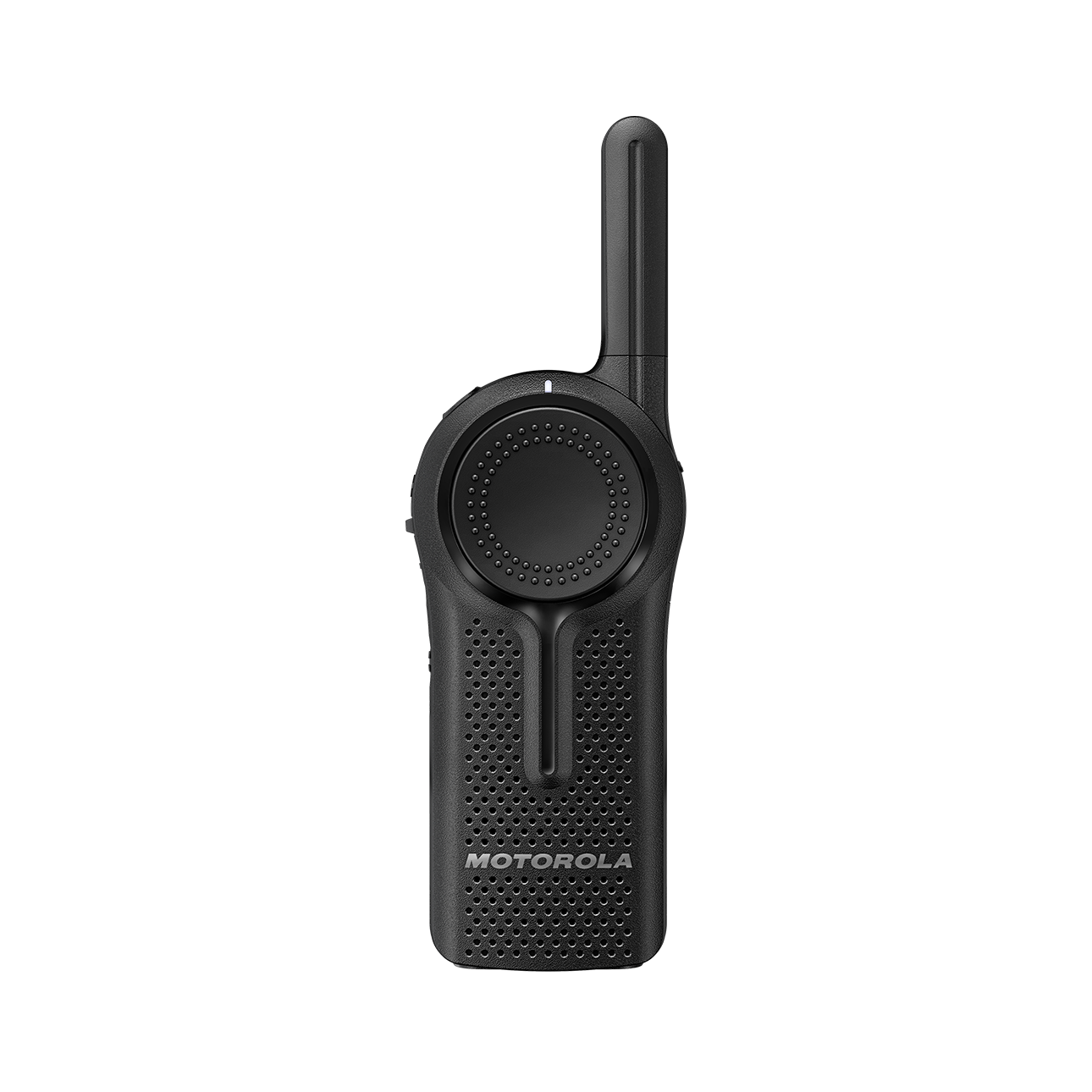

Motorola CLR PLUS UHF 1Watt handheld radio / desktop charger, 1800 mAh Li-ion battery
Description
Available with a desktop charger and battery, the Motorola CLR PLUS UHF transceiver is small, lightweight and easy to use. With a power output of 1 watt, it provides greater coverage than its 0.5 watt brother (CLR446). The CLR PLUS is IP52 rated, dust and splash resistant, making it suitable for industrial use. It's also been MIL-STD 810H tested to make sure it's tough enough to work with all day. Longer shifts are no problem for the CLR either, with long battery life that lets you communicate for up to 16 hours.
Motorola CLR Plus key features:
- 450-470 MHz UHF range
- Repeater compatibility
- New compact and lightweight design
- Enhanced 8-colour LED
- External antenna and high-quality loudspeaker operation
- Additional frequencies/channels can be accessed via the CPS (Customer Programming Software)
- Long battery life: 16 Hours (1W) operation. (Based on a 5/5/90 duty cycle)
- Custom and pre-defined voice announcements
- IP52 dust and water protection
- Additional features include Scan, Monitor, Call Tones and Escalate Call
- VOX hands-free kit
- 6 types of call tone
- Mute
- 15 volume levels
- Scan / search
- Antimicrobial coating
- 0.5 W speaker
- Priority call
- Scramble function
Motorola CLR Plus box contains:
- CLR Series Two-way Radio
- Swivel Belt Clip Holster

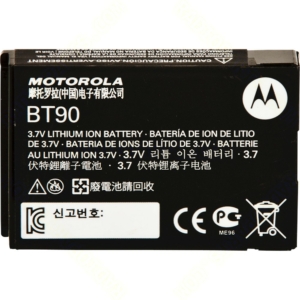

- 1800mAh Lithium-Ion Battery and Battery Door
- Single-Unit Charger
- Quick Start Guide, RF Safety Booklet, RED Leaflet
| GENERAL SPECIFICATIONS | |
| Frequency Band | UHF 450-470 MHz |
| Range | Unit to Unit:18,580 m2 (200,000 ft2) / 15 floors, With Repeater (for reference):37,160 m2 (400,000 ft2) / 30 floors |
| Channel Capacity | 16 |
| Repeater Capability | Yes |
| Channel Bandwidth | 12.5/20/25 kHz |
| PL Codes (Privacy Codes) | 39 std + 6 custom |
| DPL Codes (Privacy Codes) | 84 std + 84 inverted + 6 custom |
| Average Battery Life | @ 5/5/90 with Standard Li-Ion Battery BT90 1800 mAh 16 hours |
| Radio Dimensions | 107 x 51 x 23 mm (H x W x D) |
| Weight | Radio:w/Standard Li-Ion Battery BT90 127g |
| TRANSMITTER | |
| RF Output | High:1Watt, Low:0.5 Watt |
| Frequency Stability | +/- 1.5kHz |
| RECEIVER | |
| Sensitivity (20 dB SINAD) | -118 dBm (0.282 uV) |
| Adjacent Channel Selectivity | @ 12.5 kHz:> 60 dB, @ 20/25 kHz:> 70 dB |
| Audio Distortion | < 5% |
| ENVIRONMENTAL SPECS | |
| Operating Temperature | - 30°C to + 60°C6 (Radio) |
| Shock & Vibration | Polycarbonate Housing Passes EIA 603 |
| Humidity | Satisfied EIA 603 |
| Dust & Water Intrusion | IP52 |
Reviews
There are no reviews for this product.
Write a review!
Optional products

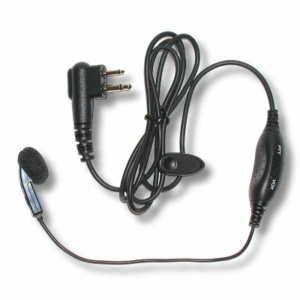

Motorola MDPMLN4442 ear microphone PTT/VOX / R2, DP1400, XT420, FT-65E, FT-4XE, CLR
20.04 EUR
Back Order

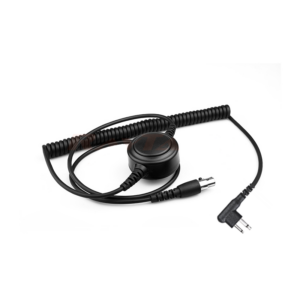

Anico 5D-M1 5 pole DIN / M1 cable with PTT / R2, DP1400, XT420, FT-65E, FT-4XE, CLR
