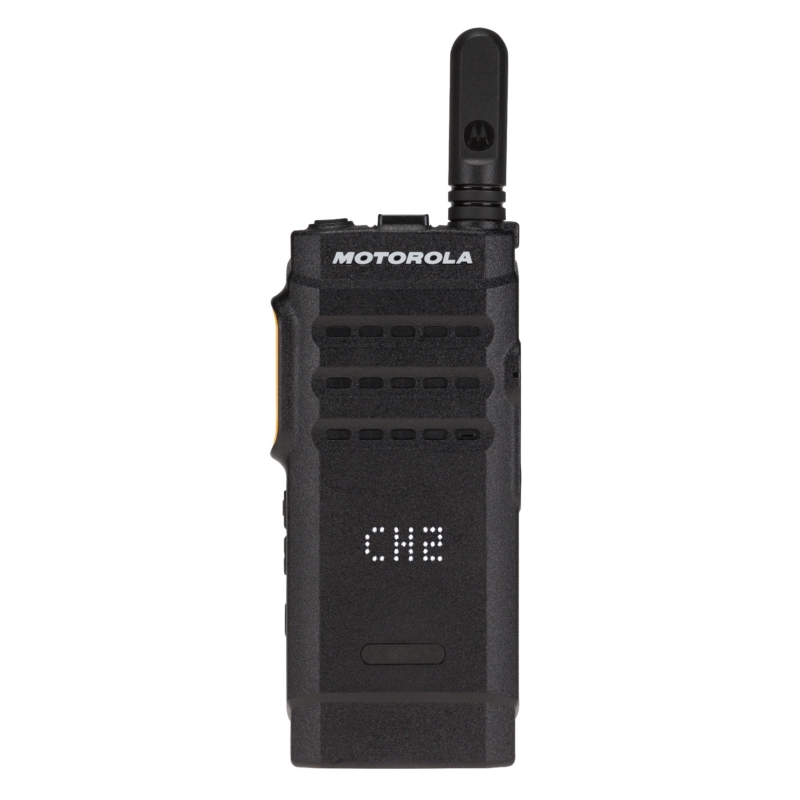

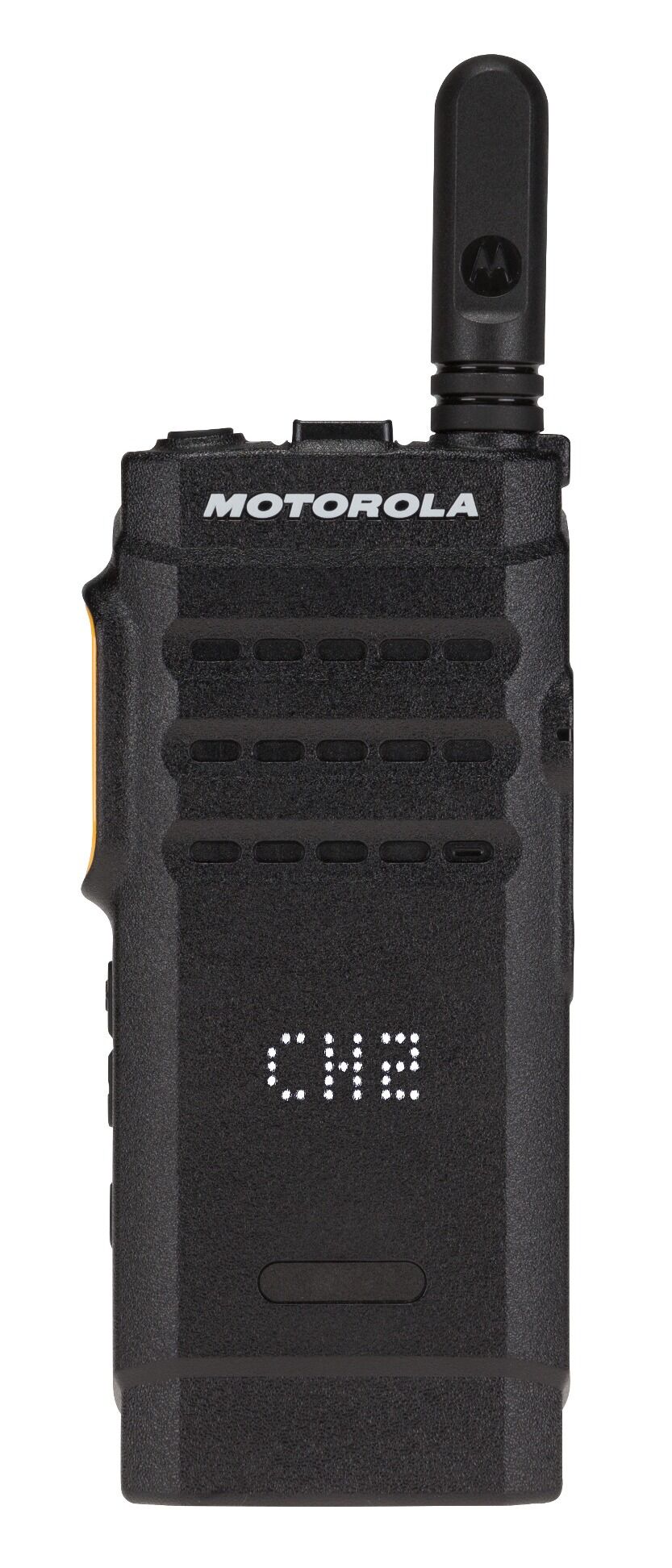

Motorola SL1600 ULTRA SLIM DIGITAL TRANSCEIVER

Motorola SL1600 ULTRA SLIM digital transceiver with 2300 mAh Li-ion battery. Motorola MOTOTRBO™ SL1600 provides reliable push-to-talk communication for the mobile, everyday user in an ultra-slim and rugged profile. Whether you're working in the field or at a black-tie event, the SL1600 is boldly designed to keep you efficiently connected.

Measuring only 22mm thick, the SL1600 is ultra-portable. A stubby antenna, curved edges and rugged frame make the SL1600 the perfect work partner. It can be easily carried in pockets or bags without snagging or bulging.

Designed for easy and intuitive use, the SL1600 has a side volume control, dedicated power button, prominent push-to-talk button, and top toggle channel switch to enable quick one-hand access. Channel “fast toggle” allows users to scroll through 10 channels at a time.

The SL1600 is outfitted with the latest technology for performance and ease of use. The shatterproof Active View display uses a matrix of LEDs behind the radio housing to communicate radio information and shuts off when not in use to conserve battery life. The SL1600 features Range Max technology: an advanced radio design and patented antenna which delivers enhanced range while maintaining a slim profile and long battery life.

The SL1600 is built to last. IP54 rated for dust and water resistance, it can be used even in harsh environments. This radio can survive many drops and tumbles. It has also been proven tough in Motorola’s grueling Accelerated Life Test, where the radio is tested against a simulated 5 years of hard service before it is accepted.


Motorola SL1600 features:

Ultra-Slim

Measuring only 22mm thick, the SL1600 redefines portability. It can be carried easily in a pocket or bag without catching or bulging.

Simple Operation

The SL1600 features a separate power button, top channel toggle switch, side volume control buttons, and prominent push-to-talk button to support one-hand radio operation.

Dual Capacity Direct Mode

Utilize the power of the 2-slot TDMA DMR standard to double the capacity of your 12.5 kHz channel—without the need for a repeater.

Voice Announcement

Audible prompts confirm operations on your radio, allowing you to keep your eyes on the job.

MicroUSB Connectivity

Efficient charging and easy programming.

Active View Display

Shatterproof Active View display uses hidden LED lighting to communicate channel, radio, and volume information crisply in both daytime and nighttime situations.

Analog/Digital

The SL1600 features a separate power button, top channel toggle switch, side volume control buttons, and prominent push-to-talk button to support one-hand radio operation.

IP54 Rated

Rugged and reliable, the SL1600 is splashproof and dustproof for use in harsh environments.

Range Max Receiver

An advanced radio design and patented antenna which delivers enhanced range while maintaining a slim profile and long battery life.

Comprehensive accessory portfolio

Innovative carry options, earpieces and charging stations allow you to get maximum efficiency from your SL1600.

Motorola SL1600 Performance Characteristics:

• UHF or VHF modells.
• Standard battery chemistry type: Lithium Ion
• Repeater capable: Yes
• Power: 1W (Minimum), 2W (Maximum, Analogue), 3W (Maximum, Digital)
• Battery life (based on a 05 05 90 duty cycle): Analogue 11.8 hours, Digital 14 hours
• Frequency range: VHF - 136 - 174 MHz; UHF - 403 - 470 MHz
• Power: 3.7V (Nominal)
• Frequency band: VHF, UHF

Motorola SL1600 Physical Characteristics:

• Display: Active View Display
• Dimensions H x W x D (with standard battery): 126 X 55 X 22 mm (4.95 X 2.17 x 0.87 in)
• Weight (with standard battery): VHF: 169g (5.96 oz), UHF: 166g (5.84 oz)

Motorola SL1600 Radio Features:

• Voice announcement: Yes
• Group call: Yes
• Programmable buttons: Yes
• Talkaround: Yes
• Number of channels: 99
• Channel spacing (kHz): 12.5, 25, 20
• One to one calling: Yes
• Missed call alerts: Yes

Motorola SL1600 Technology:

• System type: Analogue, DMR TDMA Digital
• User Environment: Mil spec - 810 C, 810 D, 810 E, 810 F, 810 G
• IP Standards: IP54
