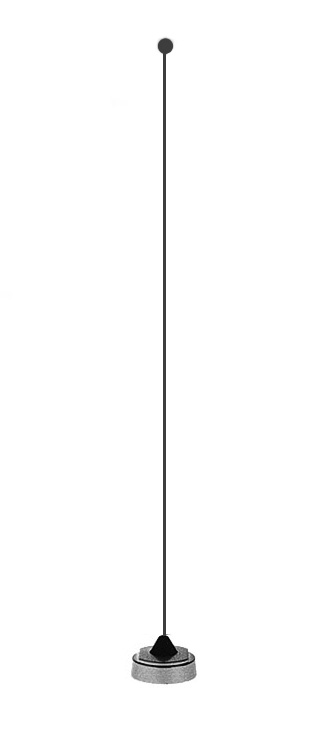

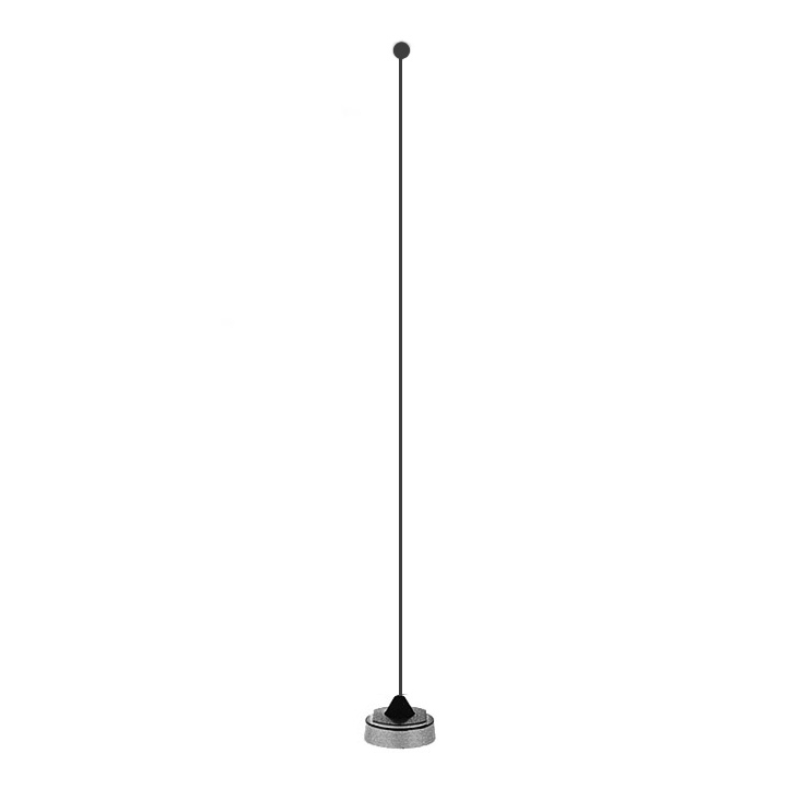

Maxrad, Pctel MFT-120 MOBILE ANTENNA

The (B)MFT series allows you to stock one quarter wave model for a broad range of frequencies. With a removable ball, it enables you to easily tune the antenna to your specified frequency after installation by first by cutting the rod, then by replacing the ball using the set screw.

Features:
• Economical.
• Available in either bright chrome or our black finish.
• Antenna includes rubber seal gasket to prevent water leakage.
• Mates with all 1-1/8”-18 thread mounts, including 3/4” mounts.

Maximum Power:
150 Watts (model BMFT120)
100 Watts (model BMFT800)
VSWR at Resonant Point:
<1.5:1
Nominal Impedance:
50 Ohms
Antenna Type:
1/4 wave

Radiator Material:
.062” diameter stainless steel; bright or black finish
Mount Nut:
Bright or black chrome finish
Antenna Height:
(B)MFT120: Approximately 24” at lowest frequency
(B)MFT800: Approximately 4” at lowest frequency
