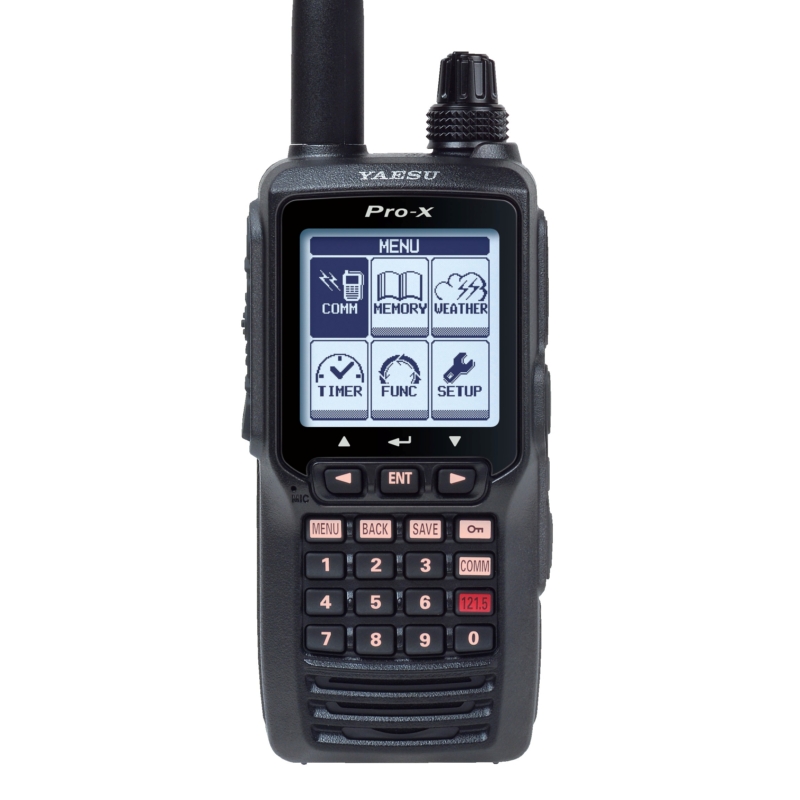

Yaesu FTA-550AA airband transceiver
Description
The Yaesu FTA-550 is packed with features, yet very affordable. Boasting an oversize full dot matrix LCD display, the FTA-550 Airband Transceiver provides full communication on the Aircraft communications Band and additionally provides VOR and ILS navigation features on the "NAV" band.
The FTA-550 includes NOAA weather band monitoring and the capability of programming up to 200 memory channels with a quick and easy channel recall feature. The brand new easy to operate menu system is icon driven making it simple to navigate through all of the powerful features this transceiver has to offer.
Additionally the FTA-550 can easily be reprogrammed in minutes using the optional PC Programming software and the supplied USB programming cable.
Two Packages available:
- FTA-550L Comes supplied with: Li-Ion battery, 220V EU plus adaptor with EU plug and 12VDC charger with cradle, Alkaline battery tray, Antenna, Belt clip, headset adapter, and USB programming cable.
- FTA-550 AA Comes supplied with: Alkaline battery tray, 12VDC Power cable, Antenna, Belt clip, headset adapter, and USB programming cable.
Yaesu FTA-550AA airband transceiver specifications:
- 5 Watts TX Output Power (Airband: AM 5W P.E.P. type, 1.5W carrier)
- Huge 1.7" x 1.7" Full Dot Matrix display (160 x 160 Dots)
- VOR Navigation Display
- NOAA Weather Channel receive
- NOAA Weather Alert
- 200 Memory Channels with 15 alphanumeric characters
- Back-lit Keypad and display with dimmer
- Water Protection -IPX5 Rating
- Loud Audio (800 mW)
Yaesu FTA-550AA airband transceiver features:
- Easy to operate menu system: The FTA-550 comes configured with an easy to operate icon driven menu system. The displays and menu settings are logically configured for a more intuitive user interface.
- Huge Dot Matrix Display (160 x 160 dots): The FTA-550 features a huge 1.7" x 1.7" full dot matrix LCD display with full backlight and dimmer. The high resolution display makes it easier to view all the great features the FTA-550 has to offer.
- VOR Navigation Display: When the FTA-550 receives a VOR signal, the display will automatically switch to the NAV band screen which shows a CDI based on the received signal.
- 200 Memory channels with up to 15 Alphanumeric characters: The FTA-550 can store up to 200 Memory channels for quick and easy retrieval. With the capability of using up to 15 Alphanumeric characters per name the FTA-550 allows for a better channel description.
Yaesu FTA-550AA airband transceiver box contains:
- Antenna (SRA-13A)
- Headset adapter cable (SCU-15)
- Battery case (SBT-12 6 x AA)
- Belt clip (SHB-11)
- Manual
- Warranty card
Yaesu SCU-42 cable required for connecting handheld Yaesu airband transceivers.
Blog posts:
IP Protection of Transceivers
Yaesu FTA-550AA airband transceiver additional specifications:
| General | |
| Frequency Range | TX:118.000 to 136.975 MHz, RX:108.000 to 136.975 MHz (NAV and COM bands), 161.650 to 163.275 MHz (Weather Channels; USA/Canada only), 329.150 to 335.000 MHz (Glide slope; FTA-750 only) |
| Channel Spacing | 25 kHz/8.33 kHz |
| Emission Type | TX:AM, RX:AM & FM (FM:for receiving the Weather Channels) |
| Supply Voltage | 6.0 to 9.5 VDC |
| Current Consumption (approx.) | 300 μA (power off), 70 mA (battery saver on, saver ratio 50%), 80 mA (squelch on), 300 mA (receive), 0.9 A (transmit 1.5 W Carrier) |
| Temperature Range | +14 ºF to + 140 ºF (–10 ºC to +60 ºC) |
| Case Size (W x H x D) | 2.4 x 5.2 x 1.3 inches (62 x 133 x 34 mm) with SBR-12LI |
| Weight (approx.) | 14.5 oz (410 g) with SBR-12LI, antenna and belt clip |
| Receiver | |
| Circuit Type | Double-conversion superheterodyne |
| IFs | 47.25 MHz & 450 kHz |
| Sensitivity | Better than 0.8 μV (for 6 dB S/N with 1 kHz, 30 % modulation) |
| Selectivity | >8 kHz/–6 dB |
| Adjacent CH. Selectivity | <25 kHz/–60 dB |
| AF Output (@7.4 V) | 0.8 W @ 16 Ohms, 10 % THD |
| Transmitter | |
| Power Output (@ 7.4 V) | 5.0 W (PEP), 1.5 W (Carrier Power) |
| Frequency Stability | Better than ±1 ppm (+14 ºF to + 140 ºF [–10 ºC to +60 ºC]) |
| Modulation System | Low Level Amplitude Modulation |
| Spurious Emission | >70 dB below carrier |
| Int. Microphone Type | Condenser |
| Ext. Mic. Impedance | 150 Ohms |
