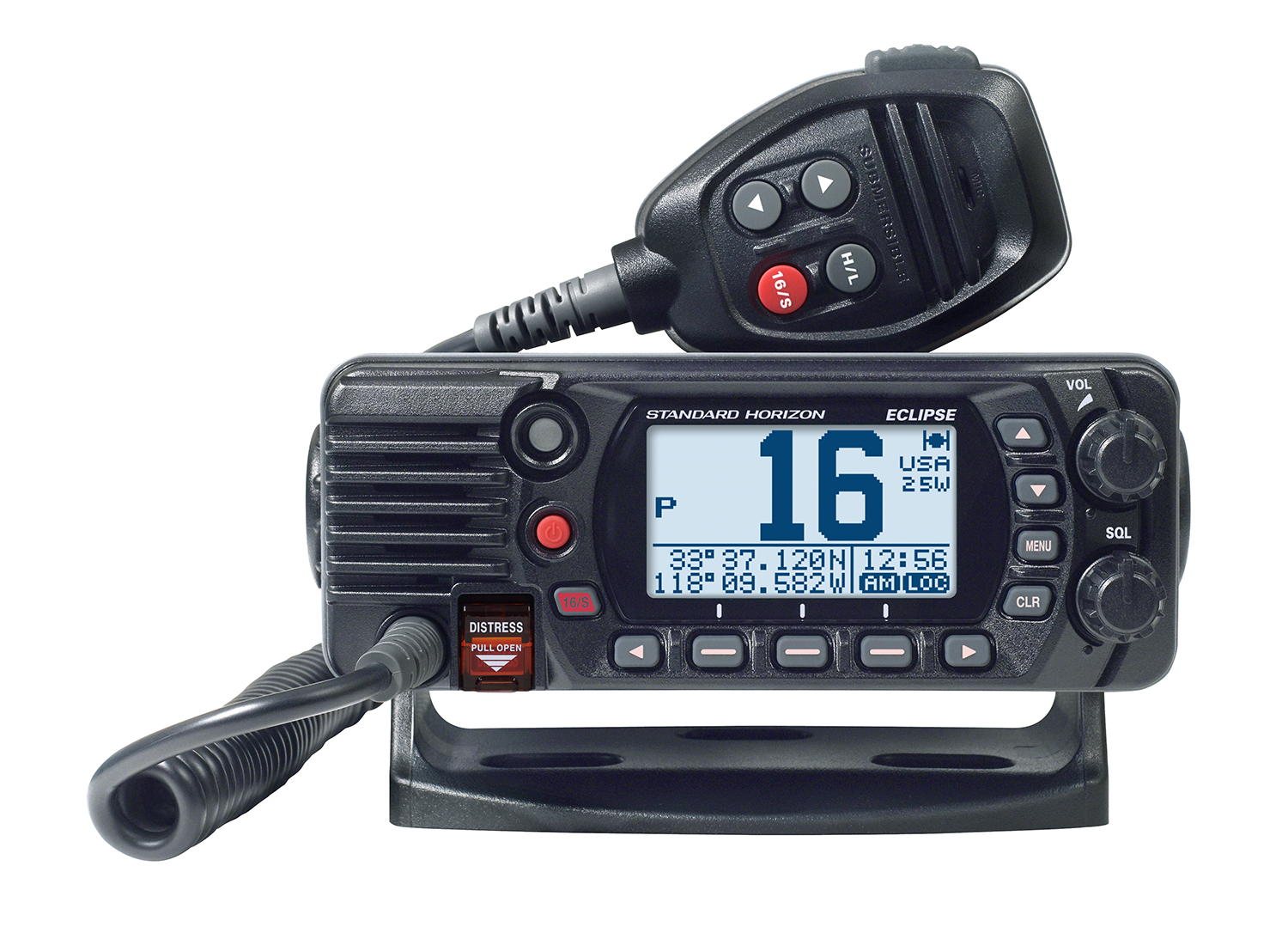

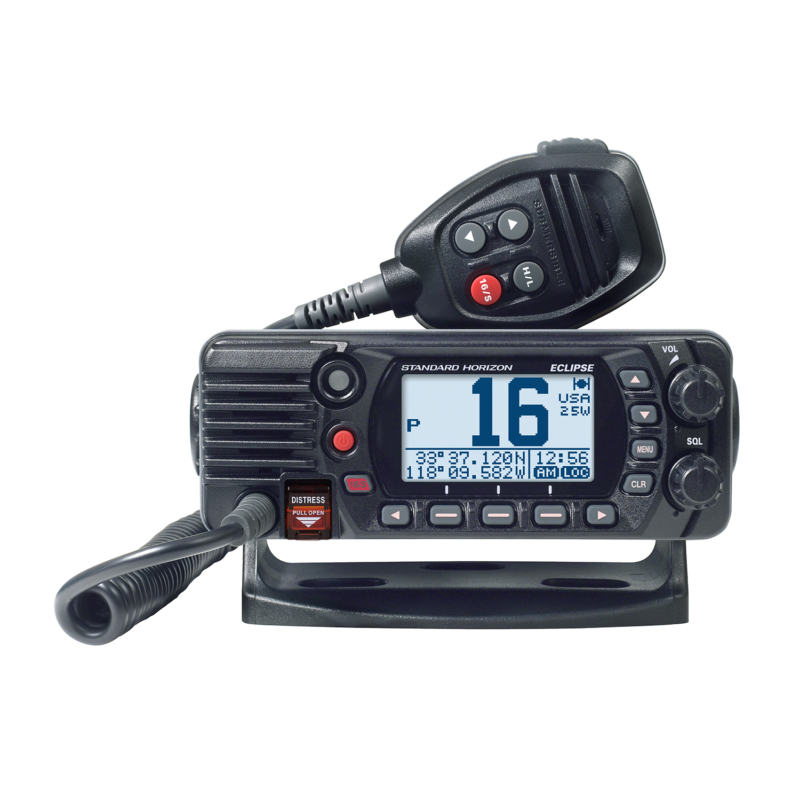

Standard Horizon GX-1400E VHF MOBILE MARINE RADIO / GPS
Description
A Standard Horizon GX-1400E is an ultra compact (156x61x100 mm) VHF mobile marine transceiver. The GX1400 Eclipse Series is an ITU-R M493-14 Class D class VHF with a separate Channel 70 receiver, which allows DSC calls to be received even when listening to communications. The DSC DISTRESS function when activated transmits a digital MAYDAY including vessel identification, Latitude / Longitude and time (with GPS connected), to facilitate prompt response. Additional calls that can be made are Individual, Urgency, Safety, Position Report and Send.
New Dot Matrix Display
High resolution dot matrix display makes navigating the radios many features smooth and easy. Now with a new brighter backlight for better display contrast
E2O Easy to Operate Menu System
Redesigned with the operator in mind, the new Easy to Operate menu system is now more intuitive than ever. Access all the menu functions and settings with just a few simple steps. DSC calling and DSC programming has never been easier.
3-Year Waterproof Warranty
If your Eclipse Series radio fails for any reason (including water damage) during normal use for the first 3 years of ownership, STANDARD HORIZON will repair or replace it free, without hassles or charges. If it fails for anytime thereafter in normal use, for as long as the original purchaser owns the radio, STANDARD Horizon's Lifetime Flat Rate and Customer Loyalty Service Programs will cover it.
Standard Horizon GX-1400E VHF marine transceiver features:
- Affordable Ultra Compact Class D Fixed Mount VHF Radio
- Meets ITU-R M493-14 Class D DSC (Digital Selective Calling)
- Replaces older Eclipse+ and Eclipse DSC Models
- Radio controls on the Microphone
- Built-in 66 Channel WAAS GPS receiver
- E2O Easy to Operate Icon/Menu System
- Oversized Full dot matrix display (31 mm x 55 mm)
- Built in Separate Receiver for CH70 (Receiving DSC Calls)
- DSC test call and Auto DSC channel change selection
- GPS position and Time Shown on a Full-dot Matrix Display when Connected to a GPS Receiver
- NMEA In and Output Connections to a Compatible GPS Chart Plotter
- Programmable soft keys
- Automatically poll the GPS position of up to 6 ships using DSC
- Submersible IPX8 waterproof rating (1.5M or 4.92 feet for 30 minutes)
- All USA/International and Canadian Marine Channels
- Preset key used to recall up to 10 favorite channels
- NOAA weather channel selection with Weather Alert
- Programmable Scan, Priority Scan, and Dual Watch
Standard Horizon GX-1400E VHF marine transceiver box contains:
- GX-1400E VHF mobile marine transciver
- Mounting bracket with 2 mounting knobs, and hardware
- Power cord with 6A fuse and holder
- DSC warning sticker
- Owner's manual
Blog posts:
IP Protection of Transceivers
All about VHF radios: frequency, range, MMSI code, ATIS code, DSC call, licences
| GENERAL | |
| Channels | European |
| Normal Input Voltage | 13.8 VDC ±20% |
| Current Drain Standby | 0.3 A |
| Receive (at Maximum AF Output) | 1.2 A |
| Transmit | 5.0 A (Hi); 1.0 A (Lo) |
| DSC Transmitted Call Log | 30 |
| DSC Distress Call Log | 30 |
| DSC Received Call Log | 50 |
| Individual Directory | 60 |
| Group Directory | 30 |
| Display Type | 2.6” x 1.4” (55 x 31 mm) Full Dot Matrix (102 x 56 pixels) |
| Dimensions (W x H x D) | 6.14" x 2.40" x 3.94" (156 x 61 x 100 mm) |
| Flush-Mount Dimensions (W x H x D) | 5.16" x 1.97" x 4.72" (131 x 50 x 120 mm) |
| Weight | 1.76 lbs (800 g) |
| TRANSMITTER | |
| Frequency Range | 156.025 MHz to 161.600 MHz (Inter National) |
| RF Output | 25 W (Hi); 1 W (Lo) |
| Conducted Spurious Emissions | Less than –80 dB (Hi); –66 dB (Lo) |
| Audio Response | within +1/–3 of a 6 dB/octave pre-emphasis characteristic at 300 to 3000 Hz |
| Audio Distortion | Less than 5 % |
| Modulation | 16K0G3E (for Voice), 16K0G2B (for DSC) |
| Frequency Stability | ±0.0003 % (–4°F to +140°F (–20°C to +60°C)) |
| FM Hum and Noise | 50 dB |
| RECEIVER | |
| Frequency Range | 156.050 to 163.275 MHz |
| Sensitivity | 20 dB Quieting 0.30 μV 12 dB SINAD 0.25 μV Squelch Sensitivity (Threshold) 0.13 μV |
| Modulation Acceptance Bandwidth | ±7.5 kHz |
| Selectivity (Typical) | Spurious and Image Rejection 75 dB for Voice (70 dB for DSC) Intermodulation and Rejection 70 dB for Voice (70 dB for DSC) |
| Audio Output | 4.5 W (at 4 ohms external speaker output) |
| Audio Response | within + 1/–3 of a 6 dB/octave de-emphasis characteristic at 300 to 3000 Hz |
| Frequency Stability (–4°F to +140°F (–20°C to +60°C)) | ±0.0003 % |
| Channel Spacing | 25 kHz |
| DSC Format | European version:Meets ITU-R M493-14 |
| INTERNAL GPS RECEIVER (GX1400GPS and GX1400GPS/E only) | |
| Receiver Channels | 66 Channels |
| Sensitivity | Less than –147 dBm |
| Time to First Fix | 1 minute typical (@Cold Start) 5 seconds typical (@ Hot Start) |
| Geodetic Datum | WGS84 |
| NMEA 0183 INPUT/OUTPUT Sentences | |
| 4800 Baud selected | NMEA 0183 Input (4800 baud) GGA, GLL, GNS, RMC, GSA, & GSV NMEA 0183 Output (4800 baud) DSC, DSE, GGA*, GLL*, GNS*, RMC*, GSA* & GSV*38400 Baud selected:NMEA 0183-HS Input (38400 baud) GGA, GLL, GNS, RMC, GSA, & GSV NMEA 0183-HS Output (38400 baud) DSC, DSE, GGA*, GLL*, GNS*, RMC*, GSA* & GSV* |
