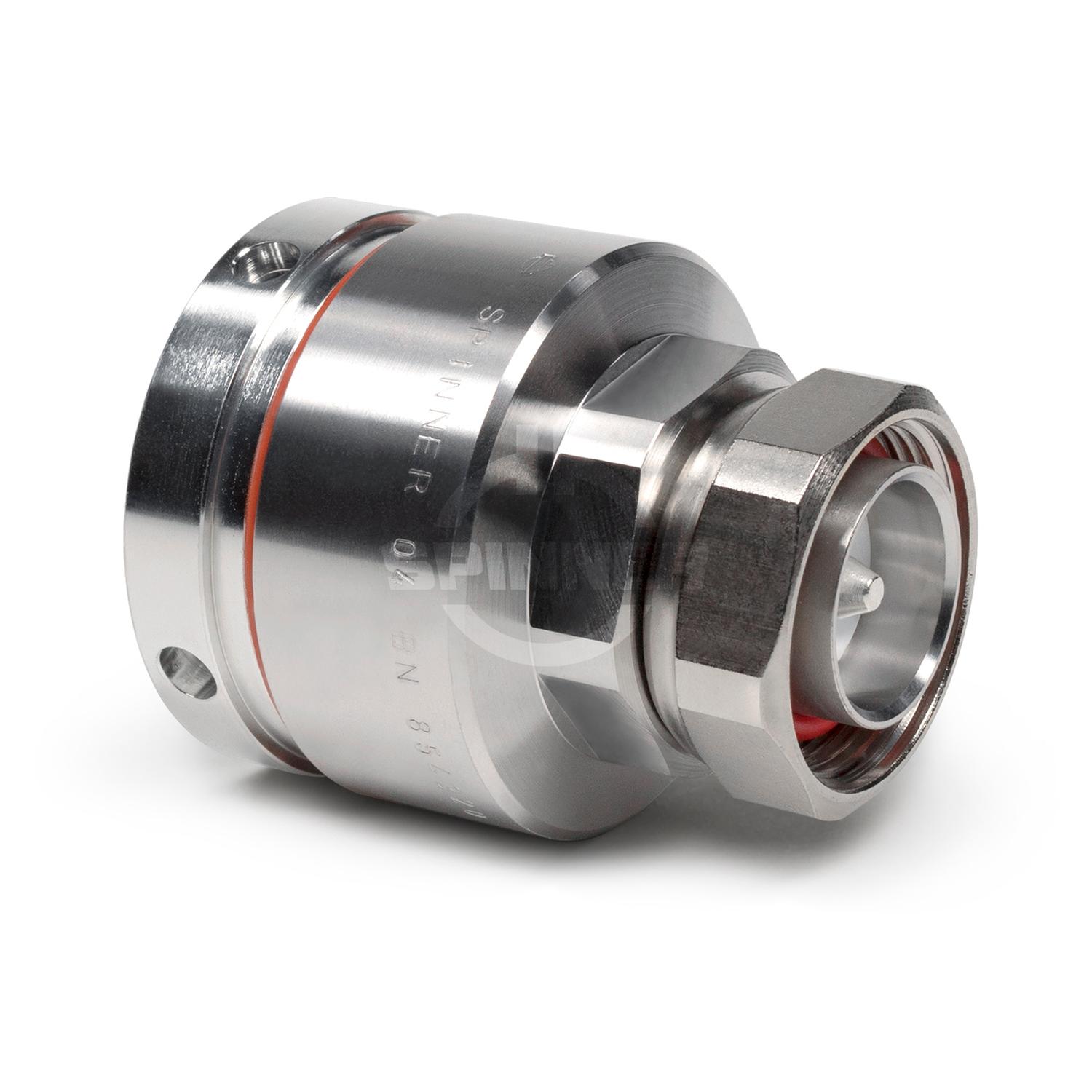

SPINNER 7-16 CONNECTOR LF 1 1/4"-50 MULTIFIT

SPINNER 7-16 connector LF 1 1/4"-50 MULTIFIT. For Heliax, Andrew, TimesMicrowave, Belden, Draka, CommScope, EUPEN etc. cables.


RF characteristics

Number of interfaces:  1
Interface type:  7-16 male (50 Ω) per IEC 61169-4
Interface direction:  straight
Mounting type:  none
Frequency range:  DC to 3.3 GHz
VSWR, max.:
        1.02 @ DC to 1.0 GHz
        1.03 @ 1.0 to 2.2 GHz
        1.06 @ 2.2 to 2.7 GHz
        1.08 @ 2.7 to 3.3 GHz

Mechanical characteristics

Cable entry type:

Spinner MultiFit®
Cable compatibility:
LF 1 1/4
Cable manufacturer types:

• SPINNER: SpinnerFlex® LF 1 1/4"-50
• Acome: HPL50-1 1/4 F
• Andrew: LDF6-50, AVA6-50
• Draka: RFA 1 1/4"-50
• Eupen: EC6-50-A, EC6-50-HF
• Hansen: RF 50 1 1/4"
• Leoni: FlexLine 1 1/4" R Low Loss, FlexLine 1 1/4" R
• LS Cable: LHF 33D Low Loss, HFC 33D Flexible Foam
• RFS: LCFS 114-50 A, LCFS 114-50 L, UCF 114-50 A, UCF 114-50 L

Inner conductor:  copper-alloy / silver-plated
Outer conductor material / surface:  copper-alloy / CuSnZn-plated
Other metal parts material / surface:
        copper-alloy / tin-plated
        copper-alloy / nickel-plated
        copper-alloy / CuSnZn-plated
Insulation:  PTFE
Housing sealing:  silicone rubber
IP protection level:  IP 68
IP protection level remark:  mated
Weight, approx.:  280.0 g
