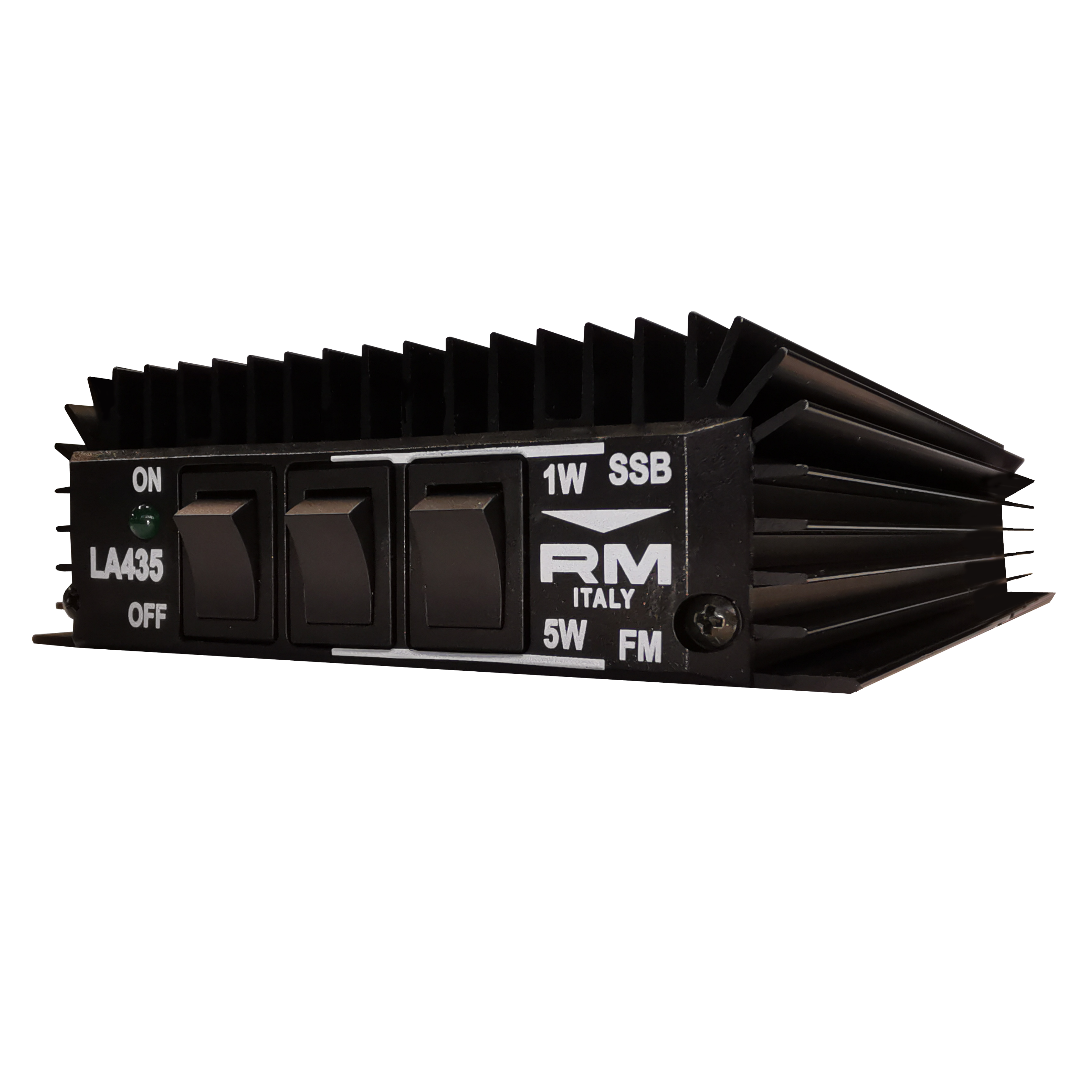

RM Italy LA435 UHF AMPLIFIER 405-485 MHz

RM Italy LA435 UHF AMPLIFIER  405-485 MHz

The RM LA435 'black line' is a wideband and compact amplifier for the UHF band, covering 405 till 480 MHz. The output nominal is 60 Watts and at full power 70 Watts (PEP). Input drive from 1-5 Watts, ideally suited to low power handheld transceivers. Output power depends both on input power and frequency of use. The amplifier features automatic RF switching between RX and TX.

Electrical data

• Input power (Watts): 1-5 AM-FM / 1-5 SSB
• Max output power (Watts): 60-70 AM-FM
• Max output power SSB (Watts): 60-70 (PEP)
• Max input SWR: 50 Ohm
• Electronic switch: Yes

Mechanical data

• Input connector: N female
• Output connector: N female
• Length: 120 mm
• Height: 40 mm
• Width: 230 mm
