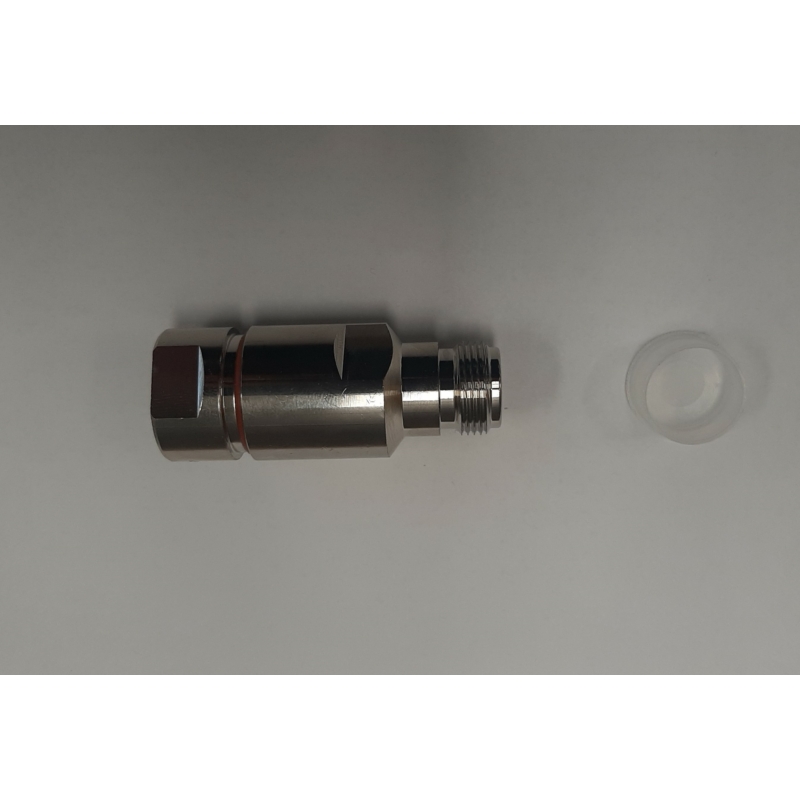

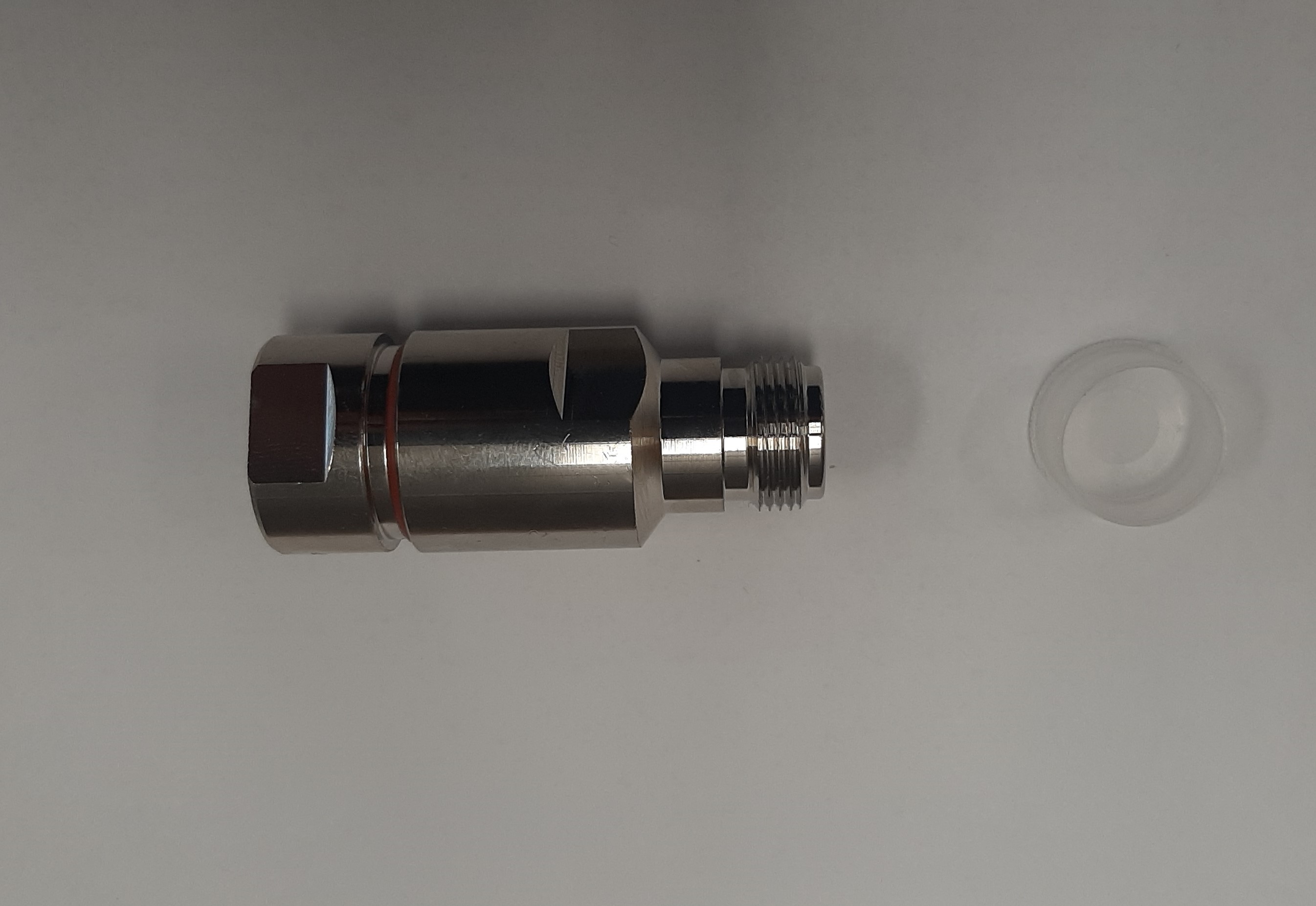

N FEMALE FOR 1/2" FEEDER CABLE
Description
N female straight cable jack for 1/2’’ feeder cable
MATERIALS & PLATING
|
Description |
Material |
Surface Plating |
|
Shell/Body |
BRASS |
Nickel |
|
Contact pin |
PHOSPHOR BRONZE |
Gold |
|
Insulator |
PTFE |
|
PHARAMETERS:
| Suitable standard | IEC 60169-16 |
| Impedance | 50Ω |
| Frequency range | max 3 GHz |
| VSWR | <1.15 @ 0~3GHz |
| PIM | -115dbm |
| Dielectric Withstanding Voltage | 1500V (RMS) |
| Contact Resistance | Center conductor ≤ 1.5mΩ, Outer conductor ≤ 1mΩ |
| Insulation Resistance | ≥ 5000MΩ |
| Mating | 5/8-24UNEF-2A |
| Durability | ≥ 500 cycles |
| Temperature range | - 40°C to +85 °C |
