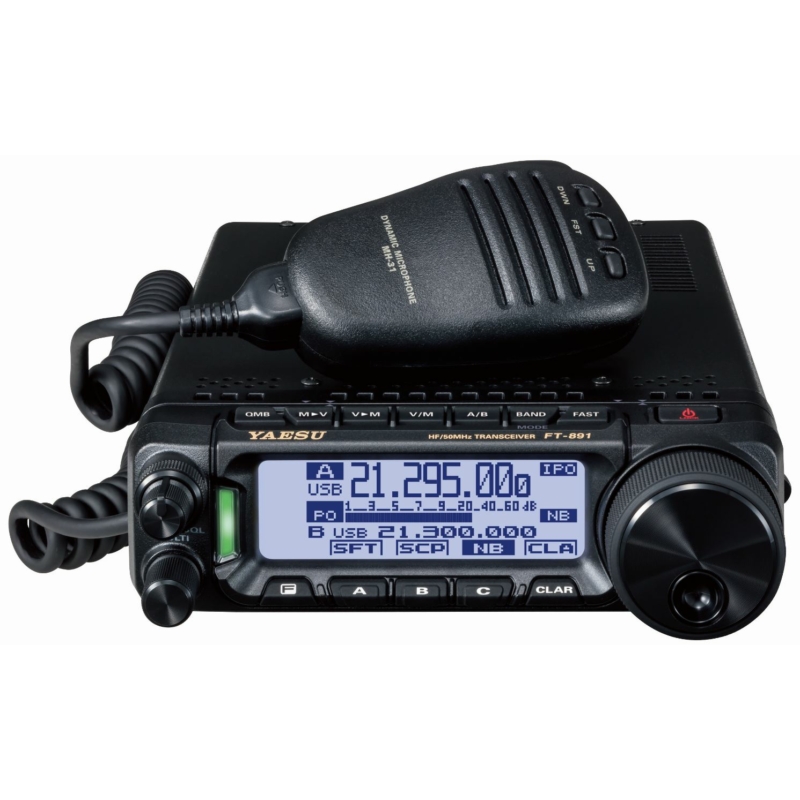

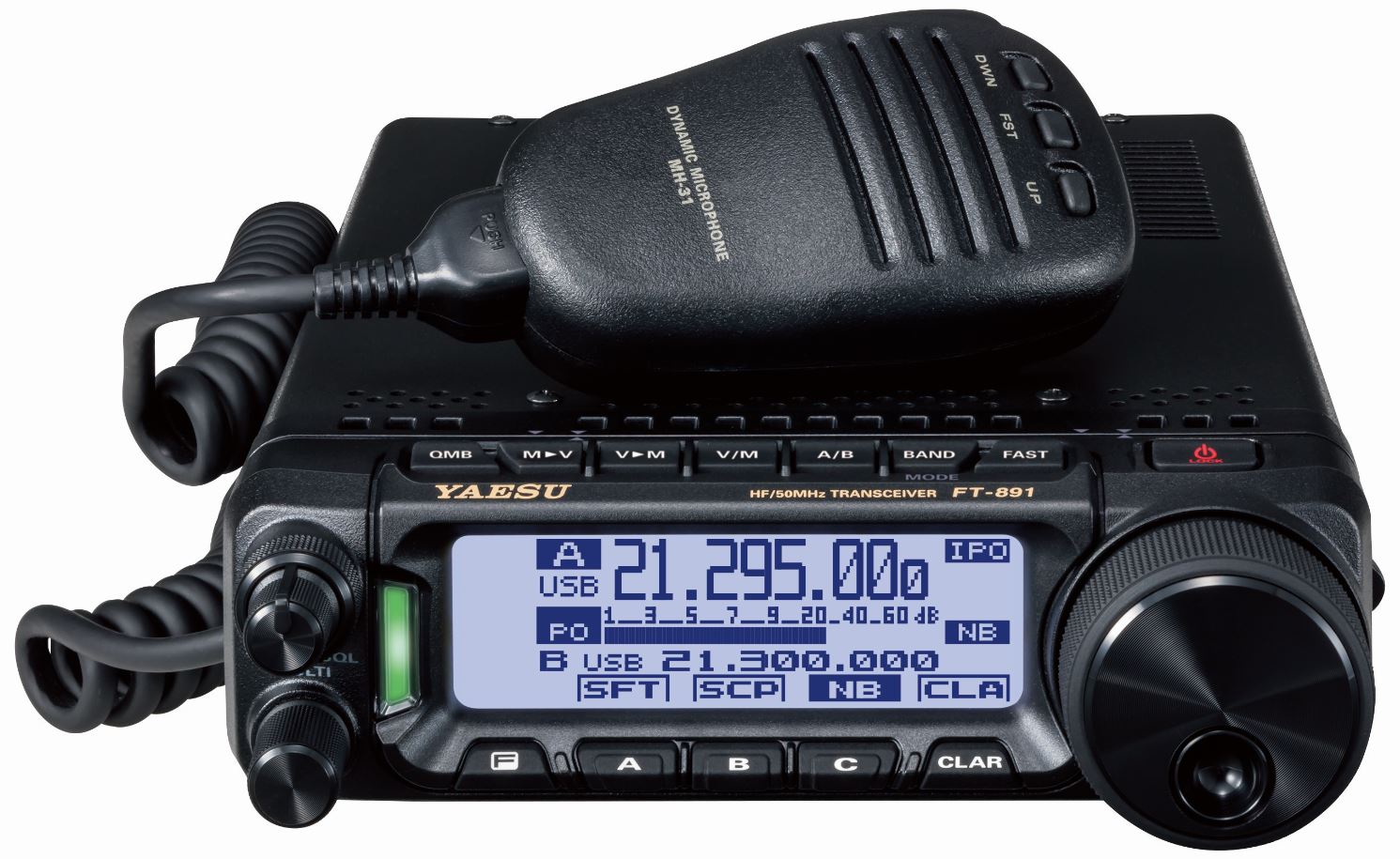

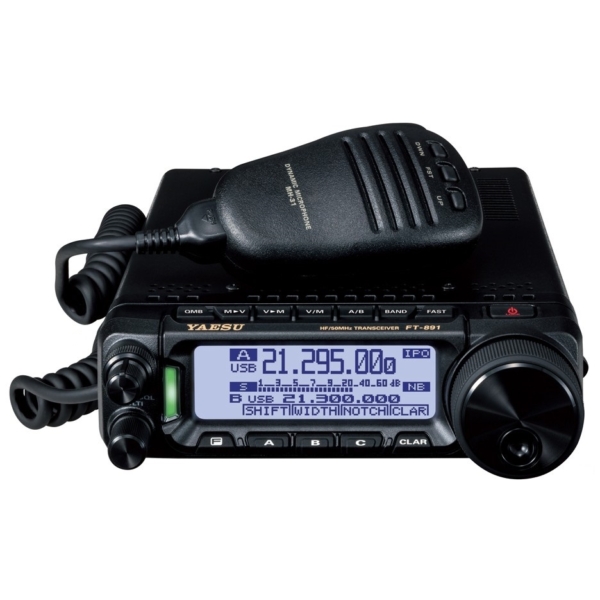

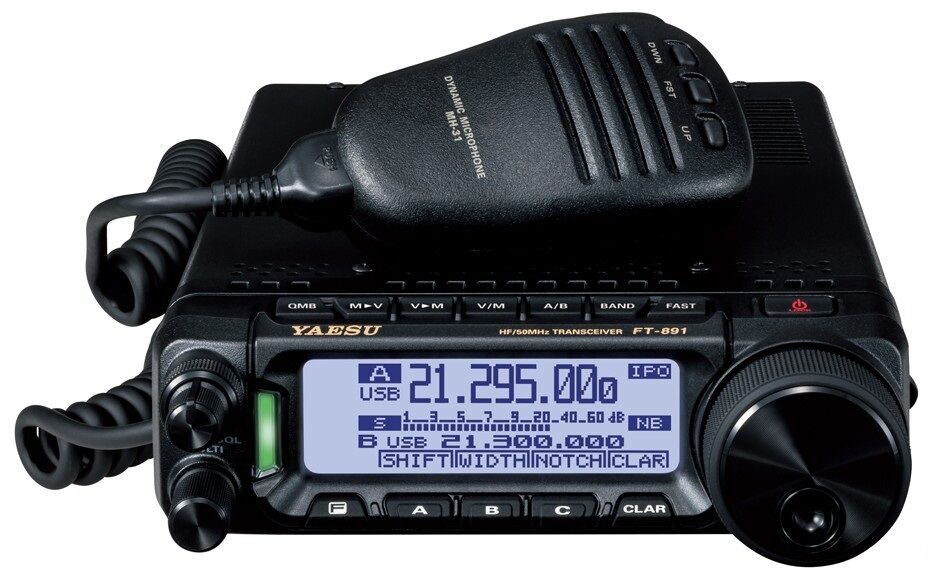

Yaesu FT-891 HF/6M/4M (CE) transceiver / with 5 year warranty

The Yaesu FT-891 HF All Mode Mobile Transceiver once again continues Yaesu's legacy for legendary receiver design in a compact package, providing uncompromised performance for both the mobile and stationary Amateur operator. High end 32-Bit floating point DSP enhances the operating experience providing a cleaner, clearer signal and reducing overall operator fatigue creating a more enjoyable environment for any Amateur operator.

Yaesu FT-891 transceiver FEATURES:

Uncompromising Receiver Circuit Design Ensures Excellent Performance

• Triple conversion with a 1st IF frequency of 69.450 MHz (SSB/CW/AM
• 3 kHz roofing filter equipped as standard feature
• TCXO provides ±0.5 ppm High frequency stability (-10°C to +50°C)

Stable 100 Watt Output

The Yaesu FT-891 provides stable 100 Watts (25W AM) of high power output. High reliability is assured by the transmitters careful circuit design with efficient thermostatically-controlled Dual internal fans and the die cast heat transferring chassis.

32-Bit IF DSP Provides effective and optimized QRM rejection

The 32 bit high speed floating Point DSP (max 3000 MIPS) provides effective cancellation/reduction (DNR) of the random noise that is frequently frustrating while on the HF bands. The highly optimized AUTO NOTCH (DNF) automatically eliminates dominant beat tones, and the CONTOUR, and the APF, are very effective receiver noise reduction tools during HF band operations.

USB Connection

The built-in USB connection supports connection to a computer via a single cable for full remote control, including CAT control and digital modes, via a virtual serial port (VCP). No SCU-17 or other external device is required. To use it, you need to download and install the SCU-17 driver from www.yaesu.com (which is hardware-installed in the radio).

Features for Ease of Operation:

• Large diameter Main Tuning Dial (1.6” / 41mm) with Torque adjustment r, you can get back  € 80.00 (£ 70.00) from Yaesu. Available: between 1st July and 30th September 2020. You can find  the application form here.

• Pop-up Menu for quick and easy navigation
• Multi-function Knob
• Large Transmit/Receive indicator
• Three programmable Front Panel Function Keys

Support for ATAS (Active Tuning Antenna System)

The FT-891 fully supports the ATAS-25 and ATAS-120A Active Tuning Antenna System (optional) allowing for plug and play field and mobile operation.

Ultra compact design

Measuring 6.1” x 2.0” x 8.6” (155 x 52 x 218 mm), The FT-891 is an innovative Multi-band, Multi-mode Mobile/Portable transceiver with an Ultra Compact and rugged case design.

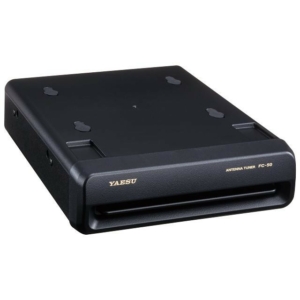

Optional FC-50 Antenna Tuner Unit

The FC-50 is a microprocessor-controlled antenna tuner that is designed specifically for the FT-891. The FC-50 can be easily coupled with the FT-891 and includes all necessary interconnect cables for operation right out of the box.

Yaesu FT-891 transceiver specifications:

Frequency Range: Tx: 1.8 – 54 MHz (Amateur Bands Only) Rx: 30 KHz – 56 MHz
Channel Step: 2/5/10 Hz (SSB, CW), 10/100 Hz (AM,FM)
Frequency Stability: +/- 0.5 ppm 14 °F to + 122 °F (-10 °C to +50 °C)
Modes of Emission: A1A (CW), A3E (AM), J3E (LSB, USB), F3E (FM)
Impedance: 50 Ohms, unbalanced
Supply Voltage: 13.8VDC +/- 15%, negative ground
Current Consumption: Rx: 2.0 A (Signal Present) Tx: 23 A
Operating Tempature Range: 14 °F to ° +122 °F (-10 °C to +50 °C)
Case Size (WxHxD): 6.1” x 2.0” x 8.6” (155 x 52 x 218 mm) w/o Knobs
Weight (Approx.): 4.18 lb (1.9 kg)
Output Power: 100W SSB/CW/FM (AM: 25W)
Circuit Type: SSB/CW/AM: Triple-conversion Super-heterodyne FM: Double Conversion Super-heterodyne
Intermediate Frequencies: 1st: 69.450 MHz / 2nd: 450 KHz
Maximum AF Output: 2.5 W 4 ohmz with 10% THD
Audio output Impedance: 4 to 16 Ohms (8 Ohms nominal)
Sensitivity: SSB/CW (S/N 10dB) 0.158uV (1.8 - 30 MHz), 0.125uV (50 -54 MHz)
AM (S/N 10 dB) 4 uV (0.5 – 1.8 MHz), 1.6uV (1.8 – 30 MHz), 1.2uV (50 – 54 MHz)
FM (12 dB SINAD) 0.35uV (29, 50 – 54 MHz)

Yaesu FT-891 transceiver supplied accessories:

• Microphone (MH-31A8J)
• Mobile Mounting Bracket (Attachment screw set)

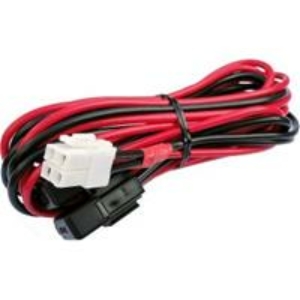

• DC power cable w/Fuse Spare fuse (25 A)
• Operating Manual
• Safty Guide
• Warranty Card

The transceiver works only within amateur bands!

In digital modes, you should limit the transmitter to a maximum of 30% of the full available transmission power, otherwise you risk damaging the power amplifier.
