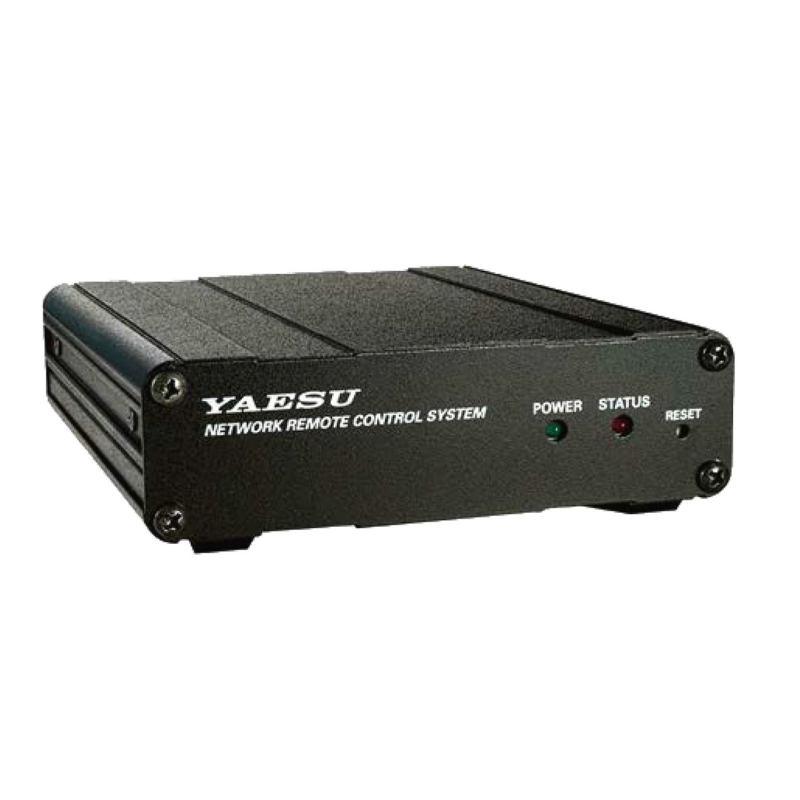

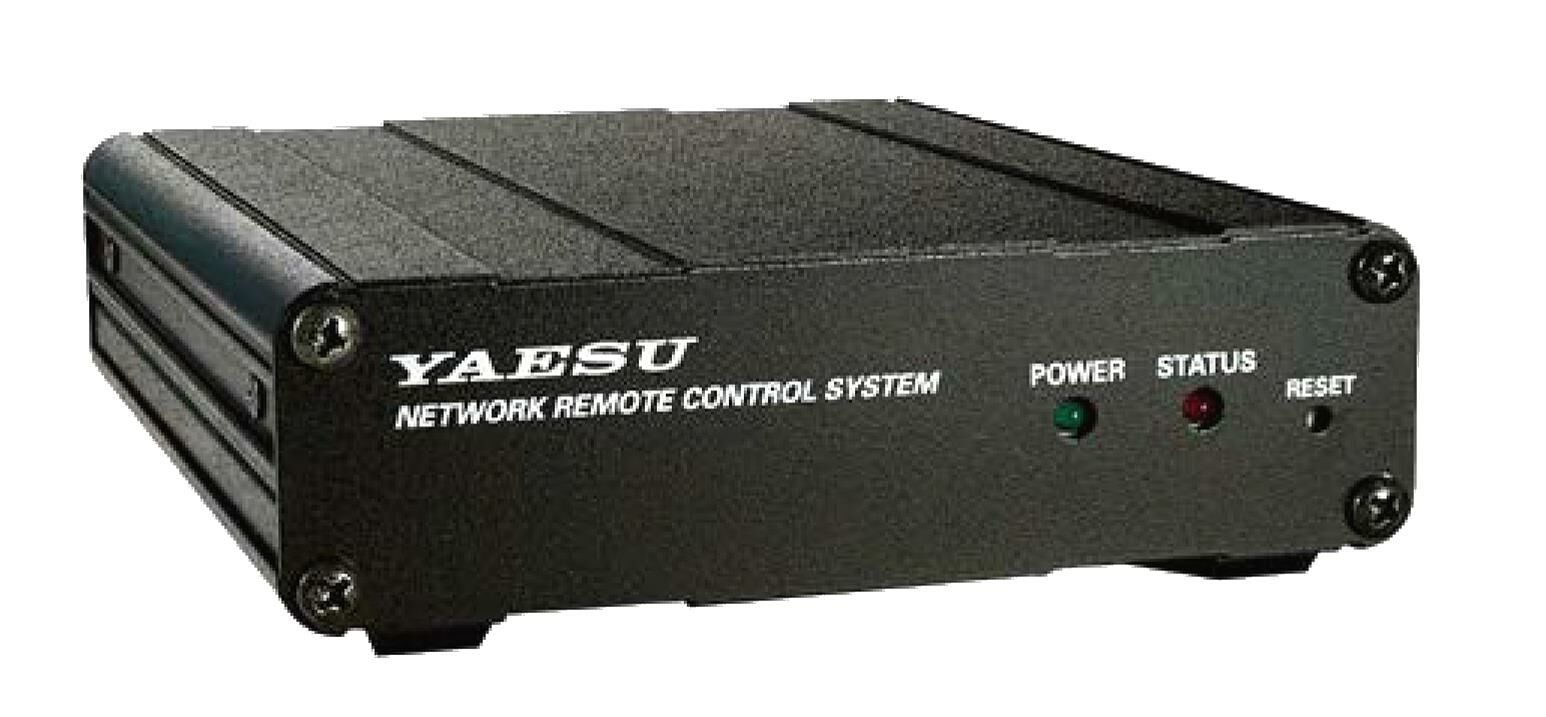

YAESU SCU-LAN10 LAN-Unit NETWORK INTERFACE / FTDX-101, FTDX-10, FT-710
Description
Yaesu SCU-LAN10 Network Remote Control System brings the advanced functionality of Ethernet LAN port direct remote control to the unparalleled FTdx-101D and FTdx-101MP, FTDX-10, FT-710 Transceivers. All of the excitement of these phenomenal radios is available to any PC, on your local network or via the Internet from anywhere in the world, with the SCU-LAN10 interface units connected to the transceiver and a local network or the Internet.
Yaesu SCU-LAN10 Network Remote Control Software is available for download from www.yaesu.com
Also available from the same link is the required Firmware Update versions listed here for the FTdx-101 series transceiver to be used with the SCU-LAN10 Interface:
- MAIN: V01-14
- DISPLAY: V01-06
- IF DSP: V01-05
- SDR: V02-03
To confirm the firmware version on your FTdx-101 series transceiver, press [FUNC] key, touch [EXTENSION SETTING] and then select [Soft Version]. The software version will be displayed.
Each SCU-10LAN unit includes:
- a special 13-pin DIN interface cable,
- a USB cable
- two snap-on ferrite RFI suppressors.
NOTE: A wired LAN port Ethernet router connection is required. Wi-Fi is not supported.
The SCU-LAN10 firmware, software, and firmware for the FT-710, FTDX101D, FTDX101MP and FTDX10 has been updated. This now means the SCU-LAN10 will work with the FT-710 as well as FTDX10, FTDX101D and FTDX101MP.
The SCU-LAN10 firmware information can be downloaded from here
The SCU-LAN10 upgrade firmware and software V3.00 can be downloaded from here.
The updated firmware for the radios can be download from:
Yaesu FT-710
Yaesu FTDX-10
Yaesu FTDX-101D / FTDX-101MP
