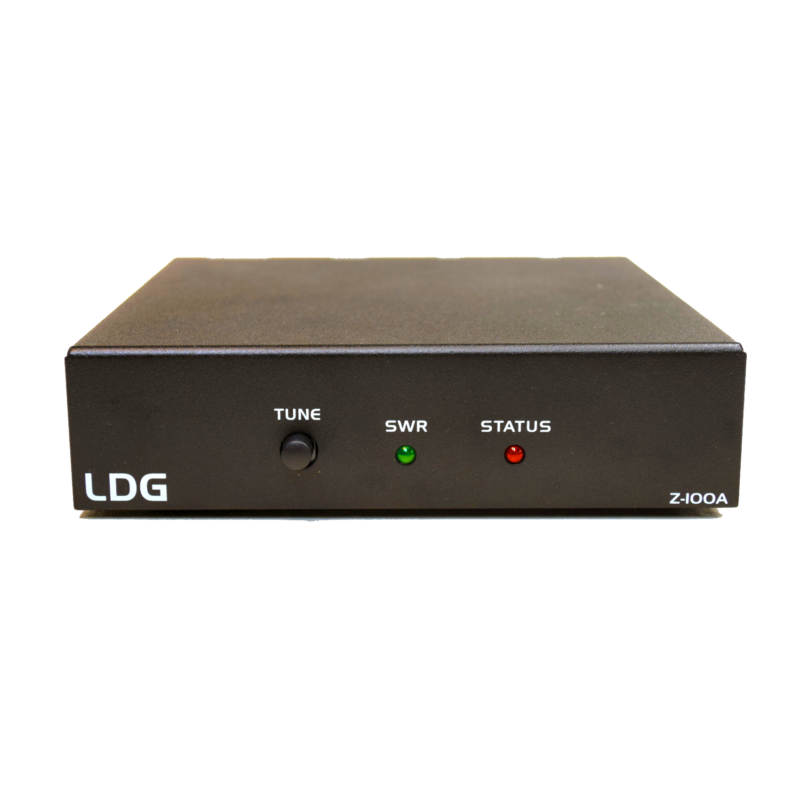

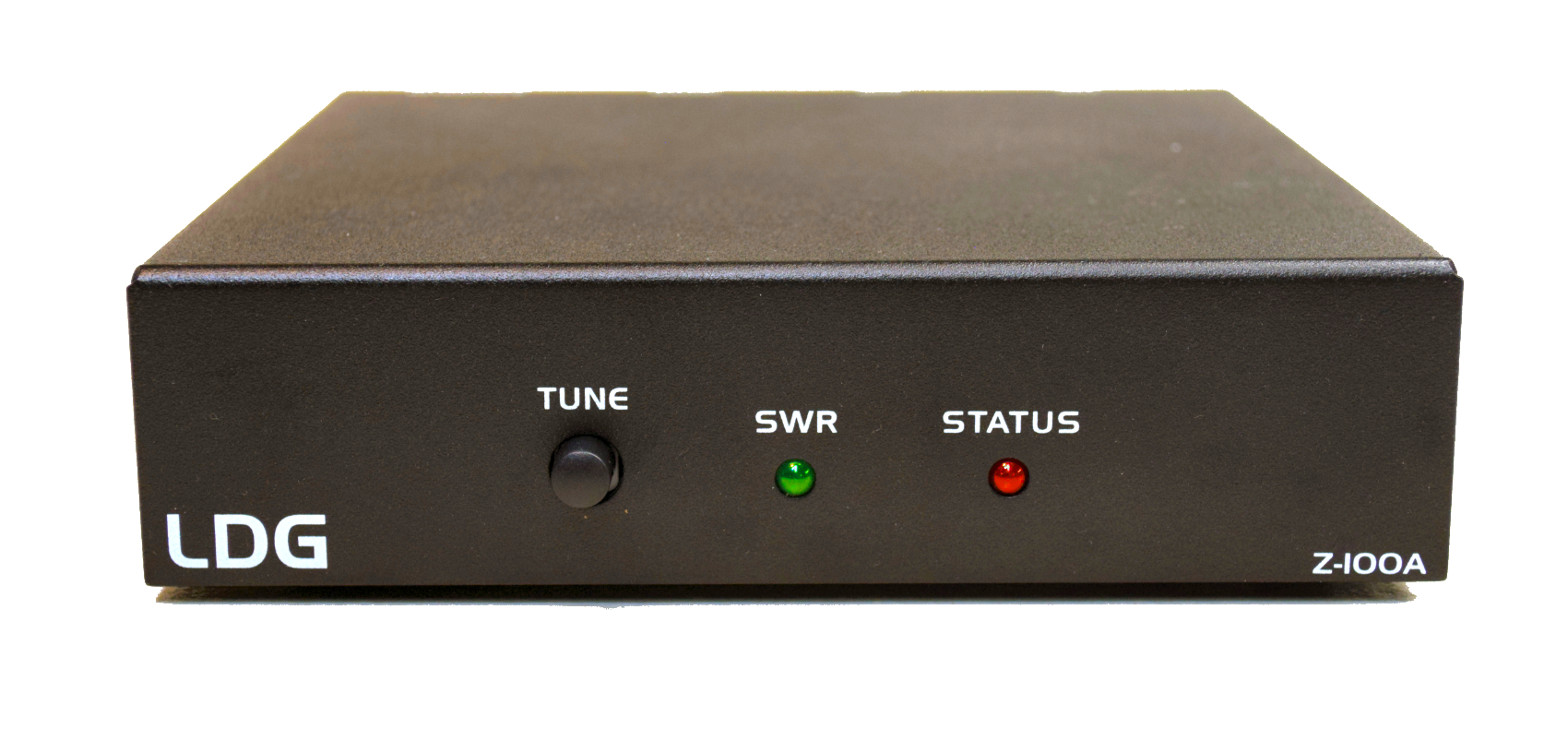

LDG Z-100A 125W tuner with 7 interfaces, DC wire cable

The LDG Z-100A tuner features LDG’s famous 10:1 SWR tuning range that matches Dipoles, Verticals, End fed wires, G5RVs or even an Off centre fed Windom.

The LDG Z-100A tuner is supplied with a complete set of interface leads, giving easy integration to all the popular brands of radio. This means plug and play operation and installation could not be simpler.

The LDG Z-100A tuner tuner goes anywhere with and HF radio…desktop, portable, parks, islands, or tall summits.

LDG continues to set new standards for auto tuners and accessories in amateur radio service. LDG Electronics is a family-owned and operated company dedicated to bringing innovative, quality products to the amateur market. Our focus is on anticipating and meeting our customer’s needs, and providing them with world-class support.

LDG Z-100A tuner specifications:

• 0.1 to 125 Watt SSB/CW, 30W Digital.
• 2000 memories for instantaneous band changing.
• Tuning time: 0.1 to 6 seconds full tune, 0.1 seconds memory tune.
• 1.8 to 54.0 MHz coverage. Built-in frequency sensor.
• Tunes 4 to 800 ohm loads (16 to 150 on 6M)
• For Dipoles, Verticals, Vs, Beams or any Coax Fed Antenna.
• Includes Icom interface cable. Ready to use out of the box.
• Small Size Enclosure: 6.5″ L x 6.5″ W x 1.25″ H.
• Weight: 1.5 pounds.

The LDG Z-100A tuner works with the following radios with the supplied Interface leads:

IC-115 lead for Yaesu Ftdx101, FTdx3000

IC-108 lead for Yaesu Ft100, FT857, FT897, FT-891, FT991A

IC109 lead for Yaesu Ft450, FT950, FT1200, Ftdx10

IC-105 lead for DX77, SR8, SR9

IC-107 - Elecraft included with Z-100A

IC-100 lead for most Icom radios - partial list IC-706, 703, 718, 7000, 7100, 7200, 7300, 7410, 746, 756, 7600, 7610 (and all variants).

Taking into account the strict warranty policy of LDG Electronics, the customer acknowledges that warranty and non-warranty repairs will be carried out exclusively by LDG's own service. The warranty period is 2 years. In the event of repair, the owner of the product must arrange for the product to be taken to LDG Electronics' service centre and pay the extra costs.

LDG Electronics
1445 Parran Rd.
St. Leonard, MD 20685 USA
