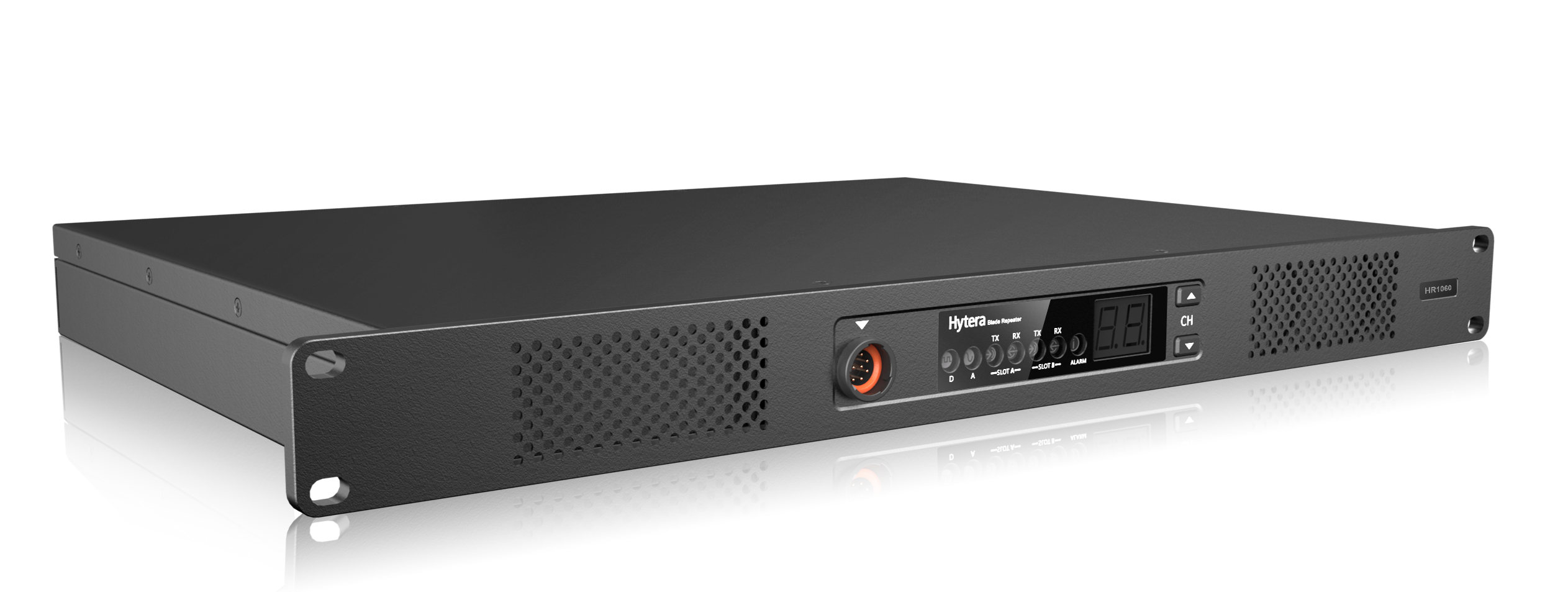

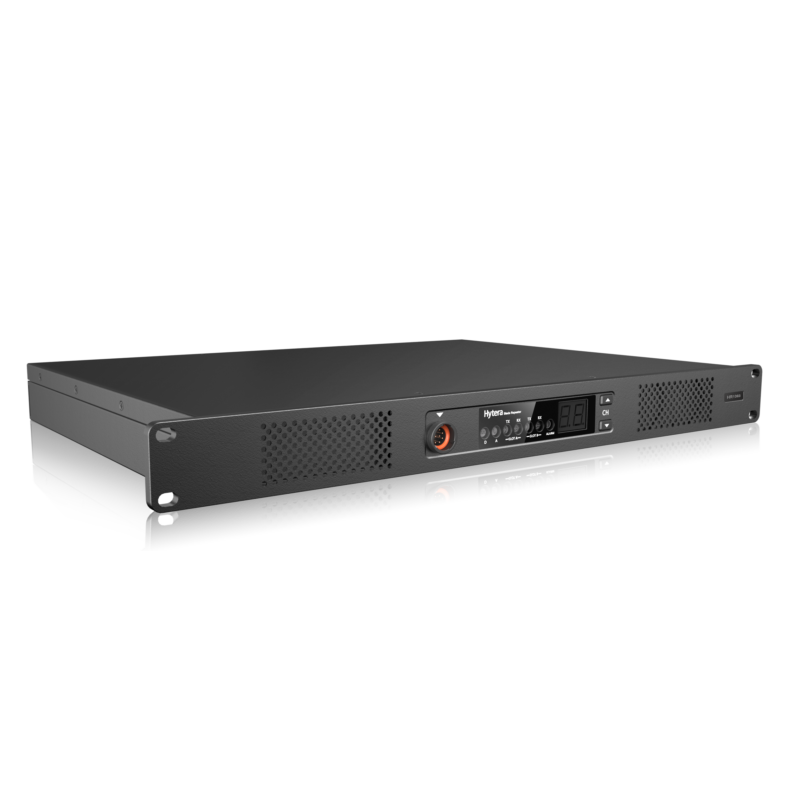

Hytera HR1065 standard UHF 400-470 MHz DMR repeater
Description
Based on rich industry experience, customer feedback and technological evolution, Hytera has launched the next generation of digital repeater. The Hytera HR1065 has a smaller form factor, enhanced performance, remote management tools and enhanced functionality. It also provides a cost-effective solution to communication networks. Pair with other H Series devices to maximise next generation DMR communication.
- Internal AC power supply with DC battery back-up
- Ethernet port provides access to IP networks
- Improved receiver sensitivity
- 64 channel capacity
Channel Display: display the channel number
Antenna: improved receiver sensitivity gives enhanced coverage and clearer audio compared to older products
Ethernet: ethernet port provides access to IP networks, allowing the HR106X to connect to other repeaters and application software for voice dispatching, AVL and messaging
Power Input: internal AC power supply with DC battery back-up allows operation during power failures (with trickle charging of lead batteries)
ULTRA-THIN MODULAR
The 1U height of the HR106X series makes it compact, thus reducing space requirements for installation.
OUTSTANDING PERFORMANCE
Enhanced version with additional co-processor provides increased processing speed to increase data processing.
COST-EFFECTIVE NETWORK CONSTRUCTION
The enhanced version of HR106X can support integrated router and SIP gateway functionality, requiring fewer devices and simplified management and offering a cost-effective solution.
CONVENIENT MANAGEMENT
In the enhanced version a web-based repeater management platform has designed to simplify repeater management. Configuration, upgrade and real-time diagnosis can all be completed through a web browser, which is ideal for remote management.
Hytera HR1065 UHF DMR repeater box includes:
- Hytera HR1065 UHF DMR repeater 400-470 MHz
- Power cord
- User Manual
- Power Supply
Blog:
Anico's product range expanded with Hytera products
How to Make Your Hytera Radio More Useful
| SPECIFICATIONS | |
| Frequency range | UHF:400-470 MHz |
| Channels & zones | Channel capacity:1024 |
| Zone capacity | 1 |
| Channels per zone | 64 |
| Channel spacing | Analogue:12.5kHz/20kHz/25kHz, Digital:12.5kHz |
| Supply voltage | DC +13.6 V ± 15% AC 100-240 V |
| Current consumption (DC) | standby DC:≤0.9 A / AC:≤0.35 A, transmitting DC:≤12 A / AC:≤1.2 A |
| Frequency stability | ±0.5 ppm |
| Antenna impedance | 50 Ω |
| Duty cycle | 100% |
| Dimensions H x W x D | 44 mm x 483 x 366 mm |
| Weight | 5.8 kg |
| Ethernet port | 1 x RJ45 Ethernet port (standard version), 2 x RJ45 Ethernet port (enhanced version) |
| USB port | 1 x USB port (enhanced version) |
| Networking | Single-site repeater mode, IP Multi-site mode |
| Digital protocol | ETSI-TS102 361-1,-2,-3 |
| Receiver | |
| Sensitivity | Analogue:0.18µV (12dB SINAD), Analogue:0.16µV (12dB SINAD) (typical), Digital:0.18µV / BER 5% |
| Adjacent channel selectivity | TIA-603:65dB @12.5kHz / 75dB @20/25kHz, ETSI:60 dB @12.5kHz / 70dB @20/25kHz |
| Intermodulation | TIA-603:75 dB, ETSI:70 dB |
| Spurious response rejection | TIA-603:80 dB, ETSI:80 dB |
| Blocking | 90 dB |
| Hum and noise | 40 dB @12.5kHz, 43 dB @20kHz, 45 dB @25kHz |
| Conducted spurious emission | @≤1GHz:≤ -57 dBm, @>1GHz:≤ -47 dBm |
| Rated audio distortion | <3% |
| Audio response | +1 to -3 dB |
| Transmiter | |
| RF power output | 5-50 W |
| FM modulation | 11K0F3E @12.5kHz, 14K0F3E @20kHz, 16K0F3E @25kHz |
| 4FSK digital modulation | 12.5kHz data only:7K60FXD, 12.5kHz data and voice:7K60FXW |
| Conducted/radiated emission | operating:-36dBm @<1GHz; -30dBm @>1GHz, standby:-57dBm @<1GHz, -47dBm @>1GHz |
| Modulation limiting | ±2.5kHz @12.5kHz; ±4.0kHz @20kHz; ±5.0kHz @25kHz |
| FM hum and noise | 40dB @12.5kHz; 43dB @20kHz; 45dB @25kHz |
| Adjacent channel power | 60dB @12.5kHz; 70dB @20/25kHz |
| Audio response | +1 to -3 dB |
| Audio distortion | <3% |
| Digital vocoder type | AMBE+2™ |
| Environmental | |
| Operating temperature | -30°C to +60°C |
| Storage temperature | -40°C to +85°C |
