Hytera ES-02 acoustic tube earset / Hytera ACM-01, BD615
Description

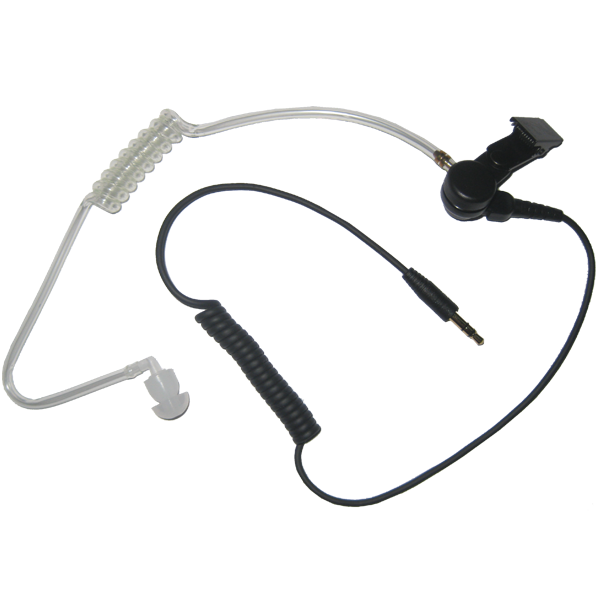

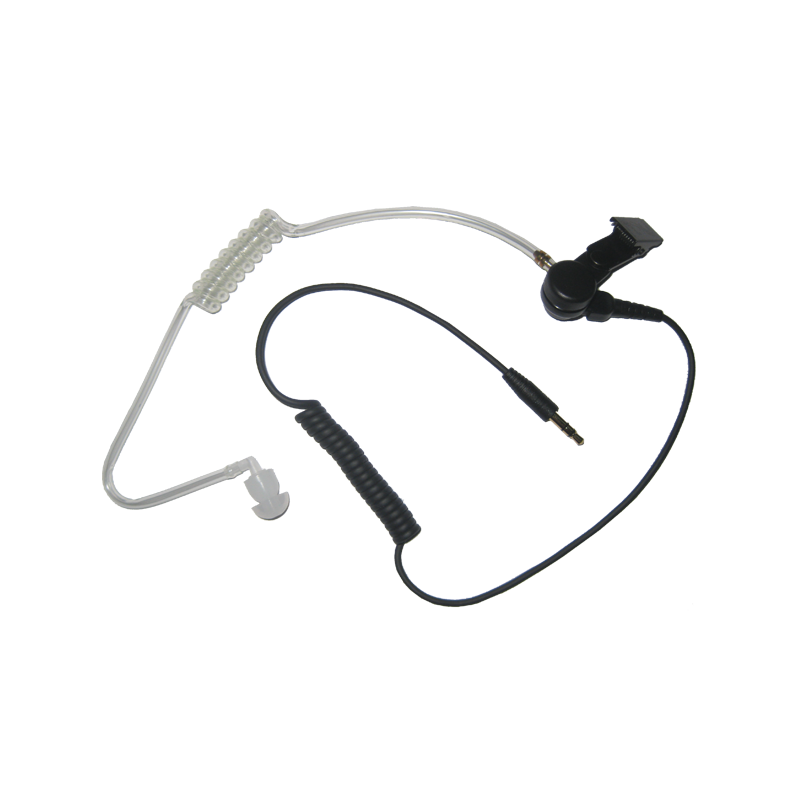

Hytera ES-02 acoustic tube earset for Hytera ACM-01 headset cable and BD615 transceiver. Reliable and ergonomically designed earpiece with acoustic tube with 3.5mm jack plug. To be used with PTT&MIC cable or remote speaker microphon.
Other applicable devices in combination with PTT&MIC controller cable:
ACM-01: TC-446S, TC-510, TC-610, TC-620, TC-700, PD4 and PD5 series
ACN-01: PD7 series, PD985, PT560H, PT580H Plus
ACN-02: X1e, X1p, Z1p, PD6 series, PDC550
ACN-02P: HP5, HP6 and HP7 series, PDC680/PTC680 (A10), PDC550
ACN-05: PDC680, PTC680, PDC760, PTC760
ACS-01: BD3 series, PD3 series
SM08M3: TC-446S, POWER446, TC-508, TC-610, TC-620, TC-700, BD505LF, PD505LF, BD505, BD555, BD615, PD405, PD415, PD485, PD505, PD565
SM13M1: POWER446, TC-610, TC-620, TC-700
SM13N5: TC-610P, TC-700P, TC-780, TC-780M, TC3000, TC3600
| SPECIFICATIONS | |
| Weight | about 20 g |
| Color | black |
| PTT key | none |
| VOX | none |
| Emergency key | none |
| Connector | 3.5mm jack plug |
| Speaker power | 10 mW (rated), 300 mW (max.) |
| Speaker impedance | 90 Ω ±15% @1kHz |
| Speaker frequency response | 117 ±3 dB @1kHz @ 10 mW |
| Ingress protection | none |
| Operating temperature | –20℃ to 60℃ |
| Storage temperature | –40℃ to 85℃ |
