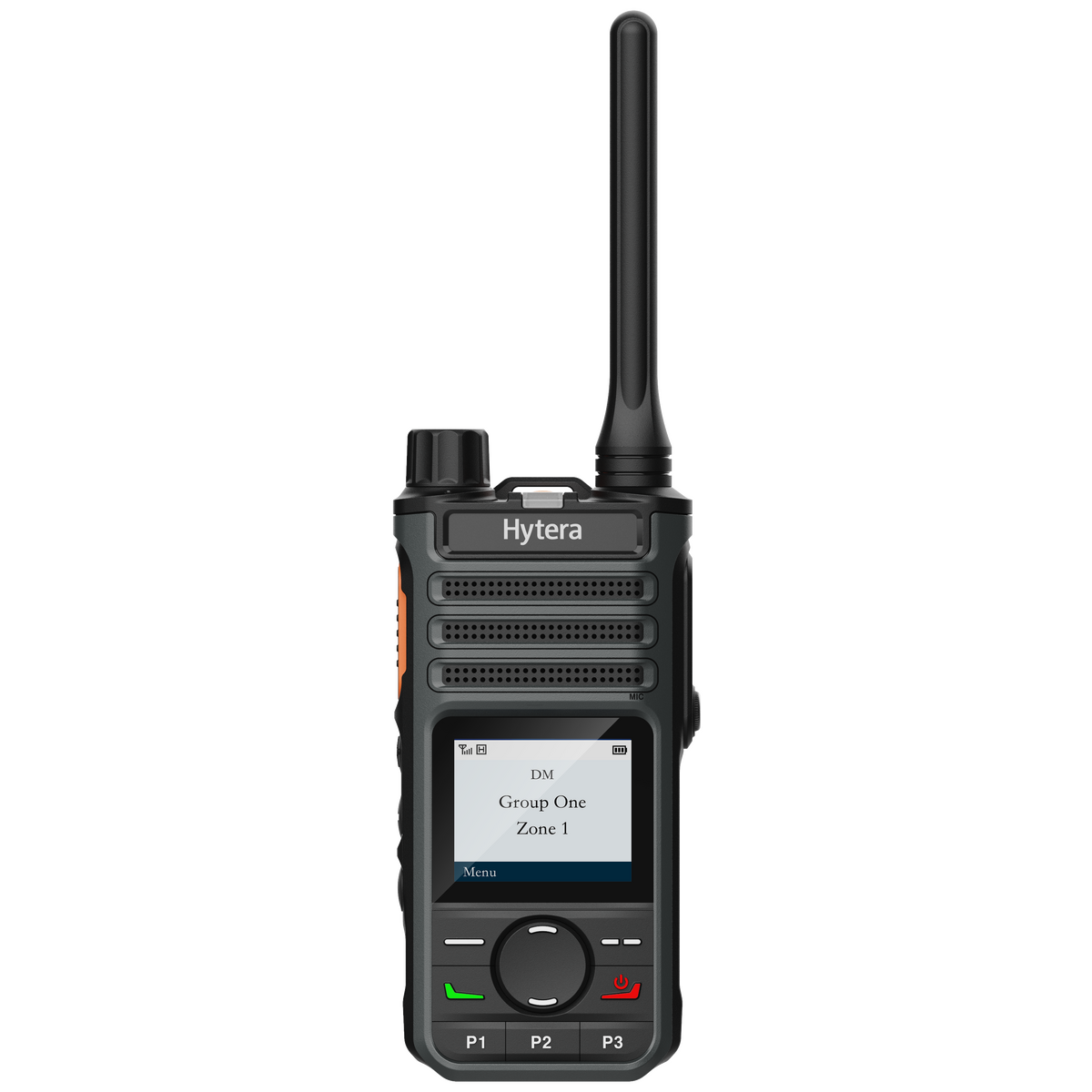

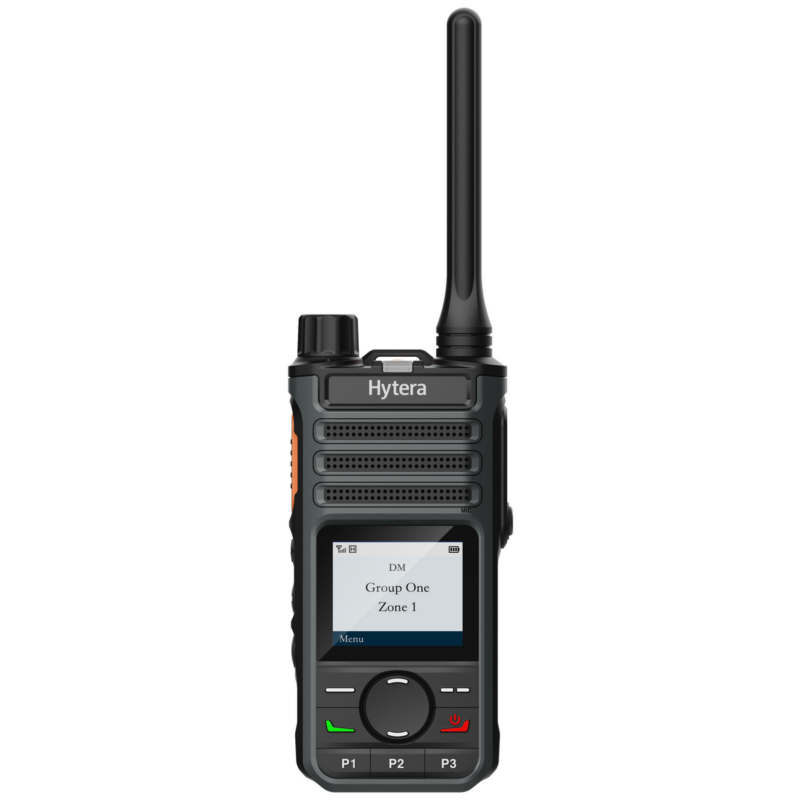

Hytera BP565 UHF DMR handheld business radio
Description
The Hytera BP565 UHF 400-470 MHz DMR handheld transceiver has 128 programmable channels supporting digital and analogue modes. The unit is programmable between 400-470MHz and it is compatible with existing digital and analogue systems and terminals. Thanks to USB-C connectivity, the 1500mAh Li-ion battery can be charged to 100% in 1.8 hours.
DIGITAL AND ANALOG COMPATIBLE
Supports both digital and analog modes, compatible with your existing digital and analog systems and terminals. Powerful digital features like priority interrupt, basic encryption, text messaging, roaming will enhance your business service. The BP5 series has extended range in class and features 128 channels, making group communication more flexible.
STURDY BODY
Wear-resistant and scratch-resistant body, standard IP54 dustproof and waterproof; large key design, flexible operation even with gloves.
CLEAR AND LOUD AUDIO
Light and compact with a built-in intelligent noise reduction algorithm, to eliminate unwanted background noise, supports three-level noise reduction adjustment so even if the other party is speaking in a noisy environment, you can still listen clearly. 3W high-power loudspeaker with a loudness of up to 90dBA, the sound is clear and loud even in noisy and other harsh conditions; good howling suppression ability, even if many people use the transceiver in the same room, there will be no annoying howling sound.
VOICE BROADCAST
Voice broadcast confirms the operation of programmable buttons or changing the channel of non-display radios.
EXPAND COVERAGE
The Hytera BP565 has a high sensitivity receiving module and high-efficiency monopole antenna to enhance signal penetration and achieve better call affect even in weak signal areas. In addition, the monopole antenna has a unique thick screw thread design and is not easy to break and bend, it helps to enhance antenna life time and also increase the radiation efficiency compared to traditiona.
Type-C CHARGING
Use Type-C charging interface, can be used with a mobile power supply to instantly replenish energy, and put it to work anytime, anywhere.
HIGH ENERGY BATTERY
The BP5 series uses international well-known brand batteries with a long service life. It still has 80% of the initial battery capacity after 500 charge-discharge cycles. The radio can be charged from 0% to 100% in only 1.8 hours. After charging for 1 hour it can work for 10 hours. A 10W rapid-rate charger ensures safe and reliable charging which can work in harsh environments such as high or low temperatures.
DELICATE APPERANCE
Lightweight design making it lighter and thinner than similar products, easy to carry and use: Two-colour injection moulding making it highly recognisable and able to suit the user’s working environment and dressing habits.
TRUSTWORTHY QUALITY
Hytera has the world’s largest professional communication production line, and manufactures each transceiver in accordance with Industry 4.0 standards. Our strict supplier management system certification ensures each component meets the quality control requirements to ensure the consistency of product quality.
EXCELLENT COVERAGE
The Hytera BP565 has a high sensitivity receiving module and high efficiency monopole antenna to enhance signal penetration and achieve better call affect even in weak signal areas. In addition, the monopole antenna has a unique thick screw thread design and is not easy to break and bend, it helps to enhance antenna life time and also increase the radiation efficiency compared to traditional antennas by 10% to extend radio communication distance.
Hytera BP565 box contains:
- Hytera BP565 Radio 400-470 MHz
- Li-ion Battery (1500mAh)
- Desktop Charging Dock
- UK & EU standard power adapter
- Standard UHF or VHF Antenna
- Nylon Strap
- Belt Clip
- User Manual
Blog:
Anico's product range expanded with Hytera products
Puzzles of Encryption: Safe Utilisation of Transceivers in Our Days
How to Make Your Hytera Radio More Useful
| SPECIFICATIONS | |
| Frequency range | UHF:400-470 MHz |
| Channels & zones | |
| Channel capacity | 256 |
| Zone capacity | 8 |
| Channels per zone | 16 |
| Channel spacing | |
| Analogue | 12.5kHz/20kHz/25kHz |
| Digital | 12.5kHz |
| Operating voltage | 7.4V |
| Battery | 1500 mAh (standard) |
| Battery life (5/5/90 duty cycle, high TX power) | Analogue:12 h (1500 mAh) / 16 h (2200 mAh), Digital:17 h (1500 mAh) / 23 h (2200 mAh) |
| Frequency stability | ±0.5 ppm |
| Antenna impedance | 50 Ω |
| Dimensions (H x W x D) | 115 mm x 54.5 mm x 29.5 mm |
| Weight (with antenna & battery) | 230g |
| Display | 1.77 inch TFT |
| Receiver | Sensitivity |
| Analogue | 0.18 μV (12dB SINAD) |
| Digital | 0.18 μV / BER5% |
| Adjacent channel selectivity | TIA-603:60 dB @12.5 kHz / 70 dB @20/25 kHz, ETSI:60 dB @12.5 kHz / 70 dB @20/25 kHz |
| Intermodulation | TIA-603:70 dB, ETSI:65 dB |
| Spurious response rejection | TIA-603:70 dB, ETSI:70 dB |
| Blocking | TIA-603:80 dB, ETSI:84 dB |
| Hum and noise | 40 dB @12.5 kHz, 43 dB@20 kHz, 45 dB@25 kHz |
| Rated audio power output | 1W |
| Rated audio distortion | <3% |
| Audio response | +1 to -3dB |
| Conducted spurious emission | <-57 dBm |
| Transmitter | |
| RF power output | UHF:4W / 1W |
| FM modulation | 11 K0F3E @12.5kHz, 14K0F3E @20kHz, 16K0F3E @25kHz |
| 4FSK digital modulation | 12.5 kHz data only:7K60FXD, 12.5 kHz data and voice:7K60FXW |
| Conducted/radiated emission | -36dBm @<1GHz; -30dBm @>1GHz |
| Modulation limiting | ±2.5kHz @12.5kHz; ±4.0kHz @20kHz; ±5.0kHz @25kHz |
| FM hum & noise | 40dB @12.5kHz; 43dB @20kHz; 45dB @25kHz |
| Adjacent channel power | 60dB @12.5kHz; 70dB @20/25kHz |
| Audio distortion | ≤3% |
| Environmental | |
| Operating temperature | -30°C to +60°C (radio only / battery:-20 ℃) |
| Storage temperature | -40°C to +85°C |
| ESD | IEC 61000-4-2 (level 4), ±8 kV (contact), ±15 kV (air) |
| Ingress protection | IEC60529-IP54 |
| Humidity | MIL-STD-810 H |
| Shock and vibration | MIL-STD-810 H |
