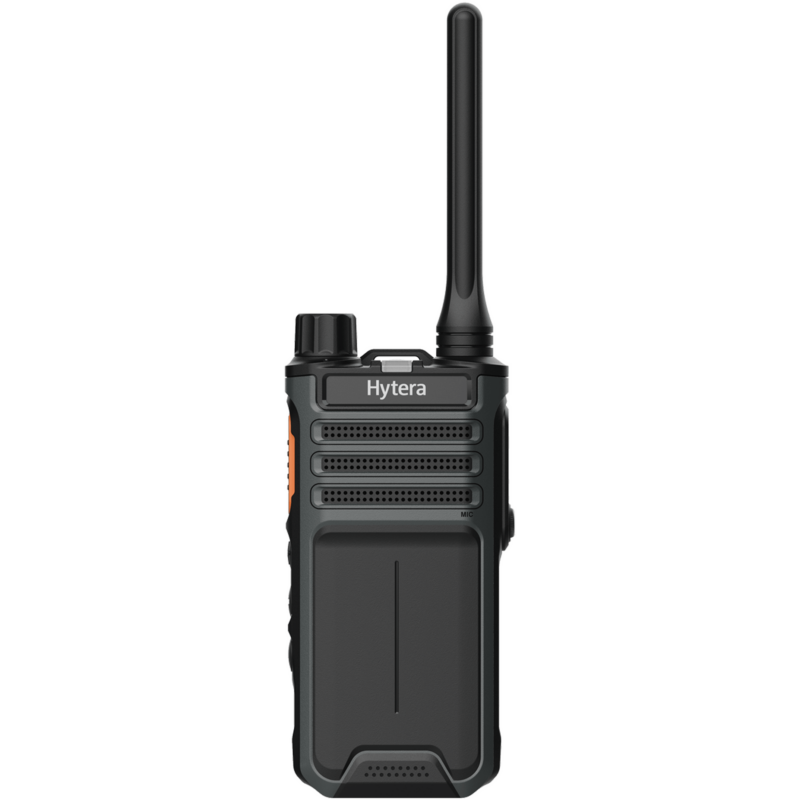

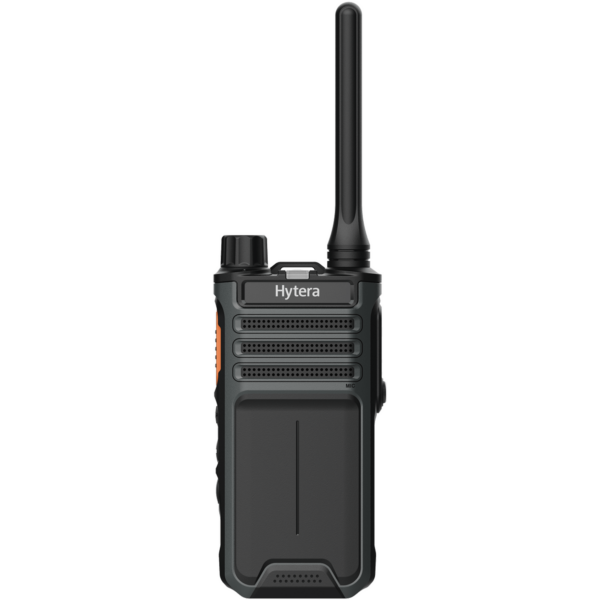

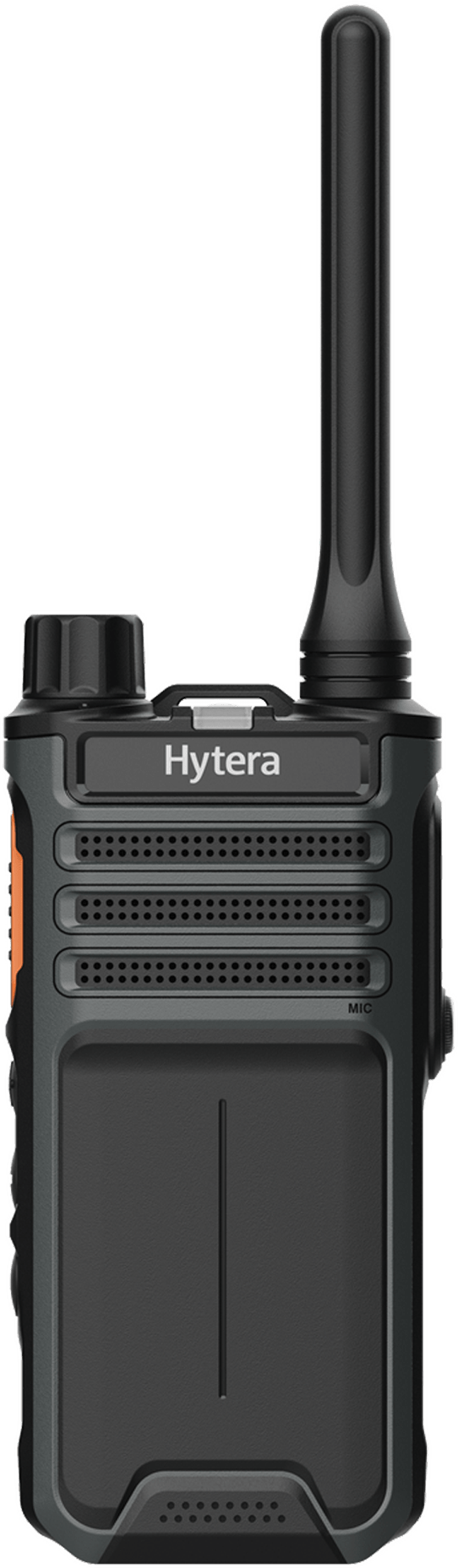

Hytera BP515LF professional analog/digital PMR446 transceiver
Description
The Hytera BP515LF PMR446 transceiver is an enhanced two-way business radio that takes advantage of both digital and analogue modes for added flexibility, compatible with other PMR446 analogue and DMR Tier I radios. The Hytera BP515LF PMR446 transceiver has extended range in class and features 256 channels, making group communication more flexible.
DIGITAL AND ANALOGUE COMPATIBLE
Supports both digital and analogue modes, compatible with other PMR446 analogue and DMR Tier I radios. The Hytera BP515LF PMR446 transceiver has extended range in class and features 256 channels, making group communication more flexible.
STURDY BODY
Wear-resistant and scratch-resistant body, standard IP54 dustproof and waterproof; large key design, flexible operation even with gloves.
CLEAR AND LOUD AUDIO
Light and compact with a built-in intelligent noise reduction algorithm that eliminates unwanted background noise, and supports three-level noise reduction adjustment which is ideal for noisy environments. With a 3W high-power loudspeaker loudness of up to 90dBA, the sound is clear and loud with good howling suppression ability.
VOICE NOTIFICATION
Voice notification confirms the operation of programmable buttons or changing the channel.
EXPAND COVERAGE
The Hytera BP515LF PMR446 transceiver has a high sensitivity receiving module and high-efficiency monopole antenna to enhance signal penetration and achieve better calls even in weak signal areas. In addition, the monopole antenna has a unique stable design that will not break and bend easily. This helps to enhance the antenna life time and also helps to increase the radiation efficiency compared to traditional antennas by 11% to extend radio communication distance.
Type-C CHARGING
Type-C charging interface can be used with a mobile power supply to instantly replenish energy, which means it will work anytime, anywhere.
HIGH ENERGY BATTERY
The Hytera BP515LF PMR446 transceiver uses international well-known brand batteries and still retains 80% of the initial battery capacity adter 500 charge-discharge cycle. The radio can be charged from 0% to 100% in only 1.8 hours. After charging for 1 hour it can be work for 10 hours. A 10W rapid-rate charger ensure safe and reliable charging even in harsh work enviroments.
DELICATE APPEARANCE
The lightweight design makes it lighter and thinner than similar products and easy to carry and operate. The two-colour injection moulding makes it highly recognisable and able to suit the users' working needs.
TRUSTWORTHY QUALITY
Hytera has the world's largest professional communication production line, and manufactures each two-way radio in accordance with Industry 4.0 standards. Our strict supplier management system certification ensures each component meets the quality control requirements to ensure the consistency of product quality.
Hytera BP515LF PMR446 transceiver features:
- Digital and analog compatible
- 256 channels
- Sturdy body
- Clear and loud audio
- Voice notification
- Expanded coverage
- Type-C charging
- High-energy battery
Hytera BP515LF PMR446 transceiver box contains:
- Hytera BP515LF transceiver on license-free 446Mhz
- Li-ion Battery (1500mAh)
- Desktop Charging Dock
- UK & EU standard power adapter
- Nylon Strap
- Belt Clip
- User Manual
Notes for programming:
To use the Hytera BP515LF licence-free transceiver other than the factory default setting, the transceiver needs to be pre-programmed. Programming is done by the official distributor in Hungary: Anico Kft. 4400 Nyíregyháza, Debreceni út 127. +36-42-507-620 mail@anico.hu Budapest branch: 1107 Budapest Ceglédi út 1-3. +36-1-339-0190 anicobp@anico.hu Programming can also be done using a programming cable, which can be purchased from Anico Kft. Programming cable article number: PC155 Programming service article number: SZ018. After purchase we will consult with all customers about programming.
Blog:
Puzzles of Encryption: Safe Utilisation of Transceivers in Our Days
Anico's product range expanded with Hytera products
| SPECIFICATIONS | |
| Frequency range | 446.0 - 446.2 MHz |
| Supported operating modes | DMR Tier I (license-free DMR - ETSI TS 102 361-1), Analogue PMR446 |
| Channels & zones | Channel capacity:256, Zone capacity:4, Channels per zone:16 |
| Channel spacing | 12.5 kHz |
| Operating voltage | 7.4 V |
| Battery | 1500 mAh (standard); 2200 mAh (optional) |
| Battery life (5/5/90 duty cycle, high TX power) | Analogue:17 hours (1500 mAh), 22 hours (2200 mAh), Digital:18 hours (1500 mAh), 24 hours (2200 mAh) |
| Frequency stability | ±0.5 ppm |
| Dimensions (H x W x D) | 115 x 55 x 29.5mm |
| Weight | 210 g |
| Digital protocol | ETSI-TS102 361-1 |
| Receiver | |
| Sensitivity | Digital:0.18uV / BER5%, Analogue:0.18uV (12dB SINAD) |
| Adjacent channel selectivity | TIA-603:60dB@12.5kHz, ETSI:60dB@12.5kHz |
| Intermodulation | TIA-603:70dB@12.5kHz, ETSI:65dB@12.5kHz |
| Spurious response rejection | TIA-603:70dB@12.5kHz, ETSI:70dB@12.5kHz |
| Blocking | TIA-603:80dB, ETSI:84dB |
| Hum and noise | 40dB@12.5kHz |
| Rated audio power output | 1W |
| Rated audio distortion | <3% |
| Audio response | +1to-3dB |
| Conducted spurious emission | <-57dBm |
| Transmitter | |
| RF power output | 0.5 W |
| FM modulation | 11K0F3E@12.5kHz |
| 4FSK digital modulation | 12.5 kHz data only:7K60FXD, 12.5 kHz data and voice:7K60FXW |
| Conducted/radiated emission | -36dBm < 1GHz; -30dBm > 1GHz |
| Modulation limiting | ±2.5 kHz @ 12.5 kHz |
| FM hum and noise | 40dB @ 12.5 kHz |
| Adjacent channel power | 60dB @ 12.5 kHz |
| Audio distortion | ≤3% |
| Digital vocoder type | AMBE+2 |
| Environmental | |
| Operating temperature | -30°C to +60°C (radio only / battery:-20 ℃) |
| Storage temperature | -40℃ to +85℃ |
| ESD | IEC 61000-4-2 (Level 4), ±8 kV (contact), ±15 kV (air) |
| Ingress protection | IP54 |
| Shock and vibration | per MIL-STD-810 G standard |
| Humidity | per MIL-STD-810 G standard |
