Description

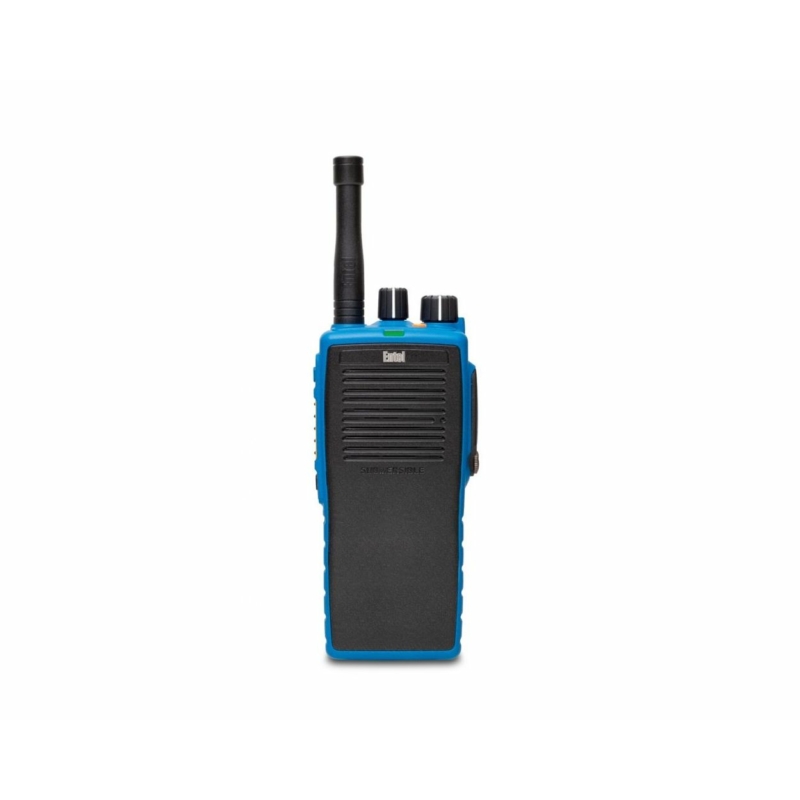

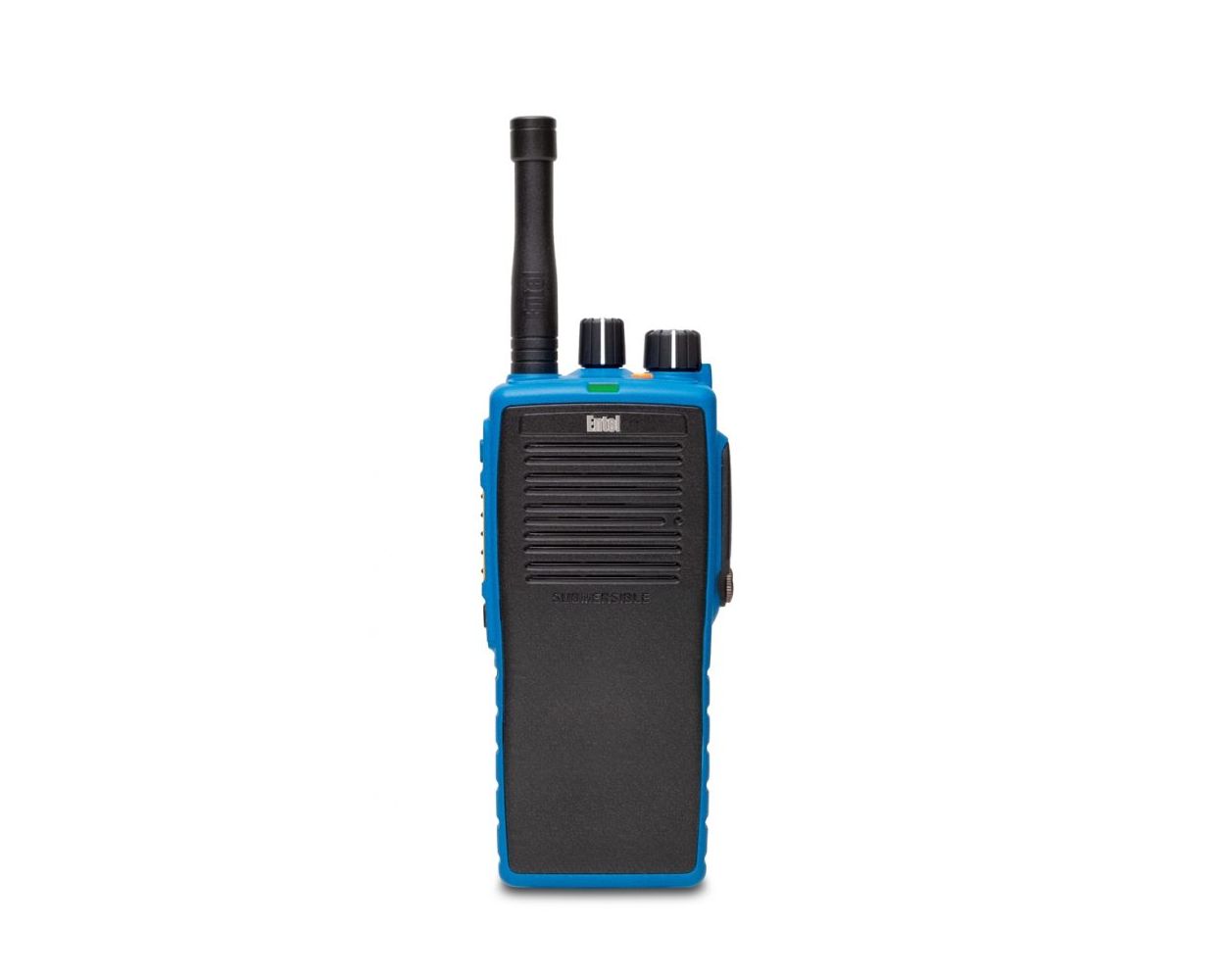

The Entel DT952 DPMR446 is an unlicensed transceiver operating on the DPMR446 band, with digital mode and explosion-proof ATEX certification. A product with a unique specification in the transceiver market. The industrial-grade unit delivers exceptional sound quality combined with outstanding audio clarity, and the ergonomic controls are specifically designed for use with glove. IP68 rated, fully submersible (2 meters 4 hours), MIL-STD-810 rated, it reliably withstands the most extreme and hostile environments.
Entel DT952 ATEX digital PMR446 radio functions:
Customisable Configuration
The fully featured and versatile Entel DT952 radios can be configured for basic push-to-talk (PTT) operation or the more advanced features that you would expect of a high tier two-way radio.
Superior Audio
Using the latest noise reduction technology, our Entel DT952 portables deliver loud and crisp audio no matter what operational environment you are in. The full DTEx accessory range incorporates a robust locking plug and high-grade cable, whilst intelligent speech tailoring technology automatically detects the type of accessory connected and optimizes the audio accordingly to deliver the very best performance.
Safety Features You Can Rely On
Entel DT952 radios support optional digital mode Lone-Worker, Man-Down and Emergency Button with call interrupt as dealer programmable features. These three levels of safety ensure an alarm is raised, even if the channel is already busy.
IP68 2 Metres, 4 Hours Submersible
The Entel DT952 Series offers the highest submersibility rating of any manufacturer - IP68. Ensuring protection against corrosion and likely hazards encountered in wet environments, these radios are constructed to withstand total immersion in water to a depth of 2 metres for 4 hours.
Migrate to Digital Your Way
Entel DT952 radios utilise both analogue and DMR digital technologies. Supporting both technologies ensures backwards compatibility with existing analogue radio systems and a simple migration path to the many benefits of digital communications.
Intrinsically Safe
ATEX Approved IIC - The DT900 series of ATEX certified portables meet IIC T4 - the most stringent ATEX ratings as per EU Directive 94/9/EC.
Entel DT952 ATEX digital PMR446 transceiver box contents:
- 1800 mAh Li-ion battery
- Fast charger
- Belt clip
- Quick Start Guide
Blog posts:
IP Protection of Transceivers
All about explosion-proof ATEX certification
Entel DT952 specifications | |
General | |
Vocoder | AMBE+2™ |
Battery DT800/DT900 | 1800mAh Lithium-Ion |
Weight | 435g |
Overall Dimensions (HxWxD) | 138mm x 60mm x 38mm |
Frequency Stability | ± 1.5ppm |
Frequency Range | PMR446 446-446.2 MHz |
Number of Channels | 16 |
Analogue Channel Spacing | 12.5/20/25KHz |
Digital Channel Spacing | 12.5KHz |
Operating Voltage | 7.4v |
Programmable Buttons | 3 |
Battery Endurance (5/5/90 Duty Cycle @ 1W) | Analogue 14.5 hours Digital 18.5 hours |
Transmitter | |
Output Power | 0.5 Watt |
Modulation Limiting | ±2.5kHz @ 12.5kHz ±4.0kHz @ 20kHz ±5.0kHz @ 25kHz |
Conducted / Radiated Spurious Emissions | Better than -36dBm |
Adjacent Channel Power | Better than 60dB |
Audio Distortion (Typical) | 3% |
Receiver | |
Sensitivity (Typical) | Analogue -121dBm (0.2uV) for 12dB SINAD Digital -121dBm (0.2uV) for 5% BER |
Intermodulation Response Rejection (ETSI) | > 70dB |
Adjacent Channel Selectivity (ETSI) | > 70dB(12.5KHz) 60dB(25KHz) |
Spurious Response Rejection (ETSI) | > 70dB |
Audio Output Power | 2-Watts |
Audio Distortion (Typical) | 3% |
Conducted Spurious Emission (ETSI) | > -57dBm |
Environmental | |
Operating Temperature | -20°C to +55°C |
Storage Temperature | -40°C to +85°C |
Thermal Shock, Humidity, Shock & Vibration, Packing Test, Drop Test | MIL-STD-810 C/D/E/F/G |
Dust & Liquid Ingress | IP68 (2m 4h Submersible) |
Approvals | Analogue mode RF EN 300 086 v2.1.2 Digital mode RF EN 300 113 v2.2.1 EMC EN 301 489-1 v2.2.0 & EN 301 489-5 v2.2.0 Safety (LVD) EN 60950-1:2006/ A11:2009/A1:2010/A12:2011/A2:2013 SAR EN 50566:2017, EN62311:2008 & EN 62209-2:2010 |
EN 300 296 v2.1.1 | |
Ex Protection | ATEX II 2G Ex ib IIC T4 Gb |
