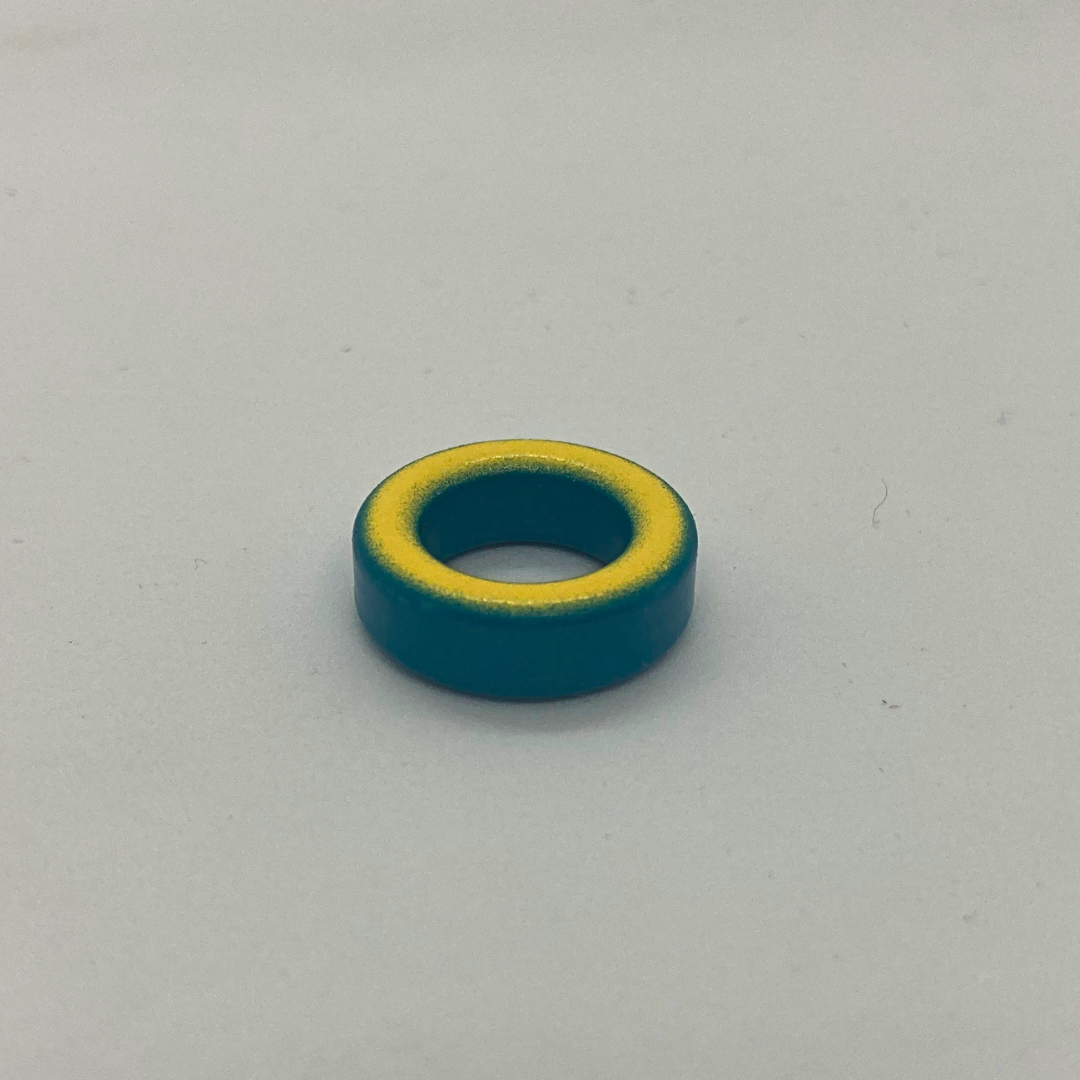

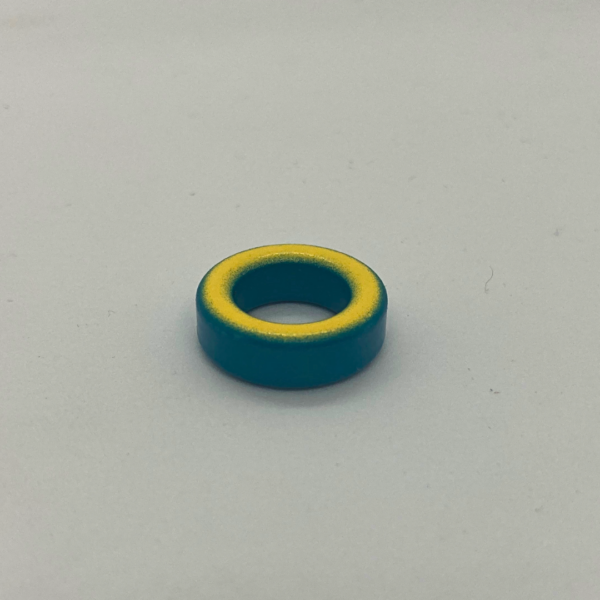

AMIDON T80-17 POWERED IRON TOROID

Anico
Model: T80-17
Nyíregyháza (HU): 51 pieces in stock
Budapest (HU): 18 pieces in stock
Add to my wishlist
For EU private customers:
VAT is recalculated to your local VAT, when you add your country through checkout menu.
Companies with EU VAT number:
We deduct the VAT on the invoice, please put your EU VAT number to the Note column when you process the order through checkout menu!
For NON EU customers:
We charge the NET price (exl VAT). Shipping and insurance varies by countries. Please ask for quotation! Paying import duty and tax is your own task, insurance is your own risk.
Buy Now Pay Later
Buy now and pay in 30 days with PastPay! For corporate clients only, in certain EU countries.
1.19 EUR (1.00 EUR + VAT)
Qty:pieces
Add to Cart

Description

Physical Dimensions



OD = .795 in / 20.2 mm +/- 0.02 in
ID = .495 in / 12.6 mm +/- 0.02 in
Ht = .250 in / 6.35 mm +/- 0.025 in
 AL=2.2 +/- 5 %      uH=(AL*Turns2)/1000
Temperature Stability (ppm /°C) = 50
Color Code = Blue / Yellow
Optimum Resonant Circuit Range
for highest Q and lowest core loss
20 MHz - 200 MHz
