AMIDON FT140-43 FERRITE TOROID

Anico
Model: FT140-43
Nyíregyháza (HU): 860 pieces in stock
Budapest (HU): 28 pieces in stock
Add to my wishlist
For EU private customers:
VAT is recalculated to your local VAT, when you add your country through checkout menu.
Companies with EU VAT number:
We deduct the VAT on the invoice, please put your EU VAT number to the Note column when you process the order through checkout menu!
For NON EU customers:
We charge the NET price (exl VAT). Shipping and insurance varies by countries. Please ask for quotation! Paying import duty and tax is your own task, insurance is your own risk.
Buy Now Pay Later
Buy now and pay in 30 days with PastPay! For corporate clients only, in certain EU countries.
3.41 EUR (2.86 EUR + VAT)
Qty:pieces
Add to Cart

Description

AMIDON FT140-43 FERRITE TOROID

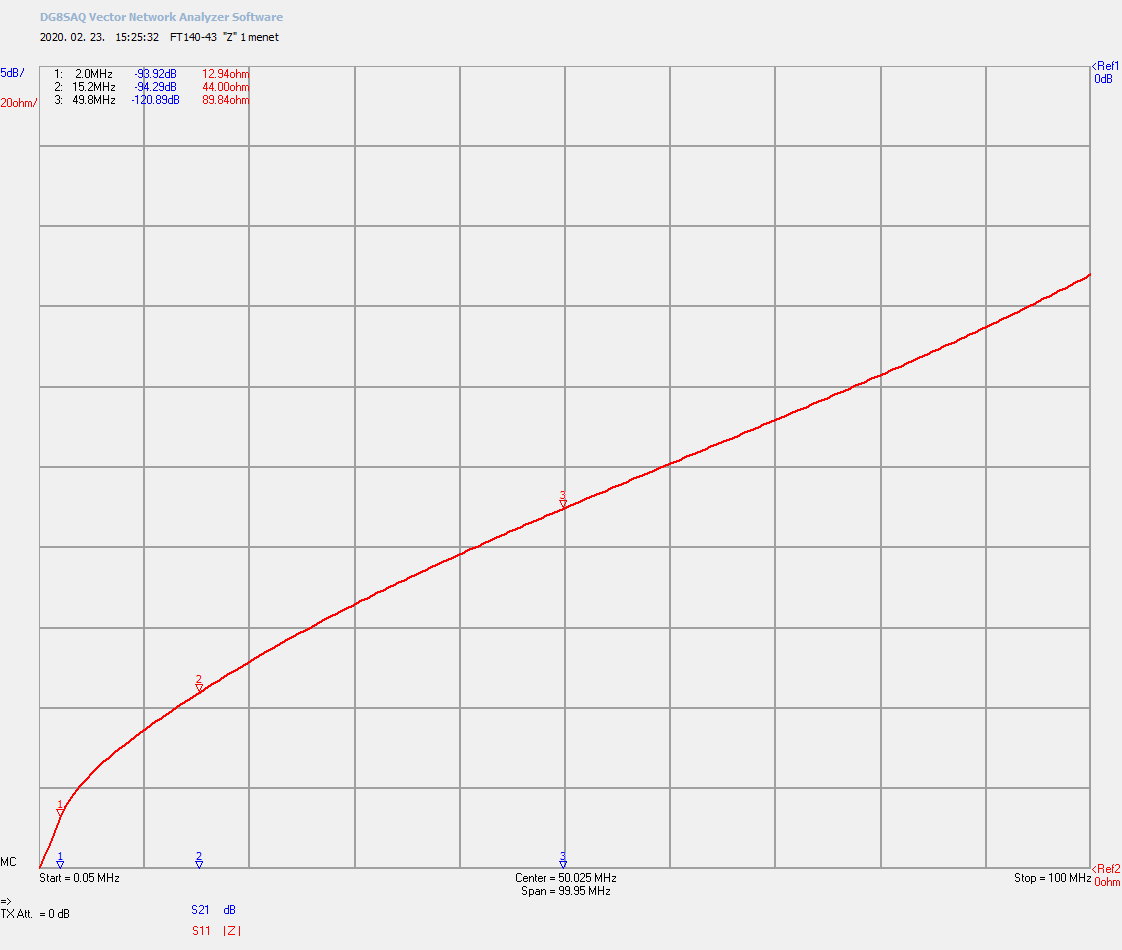

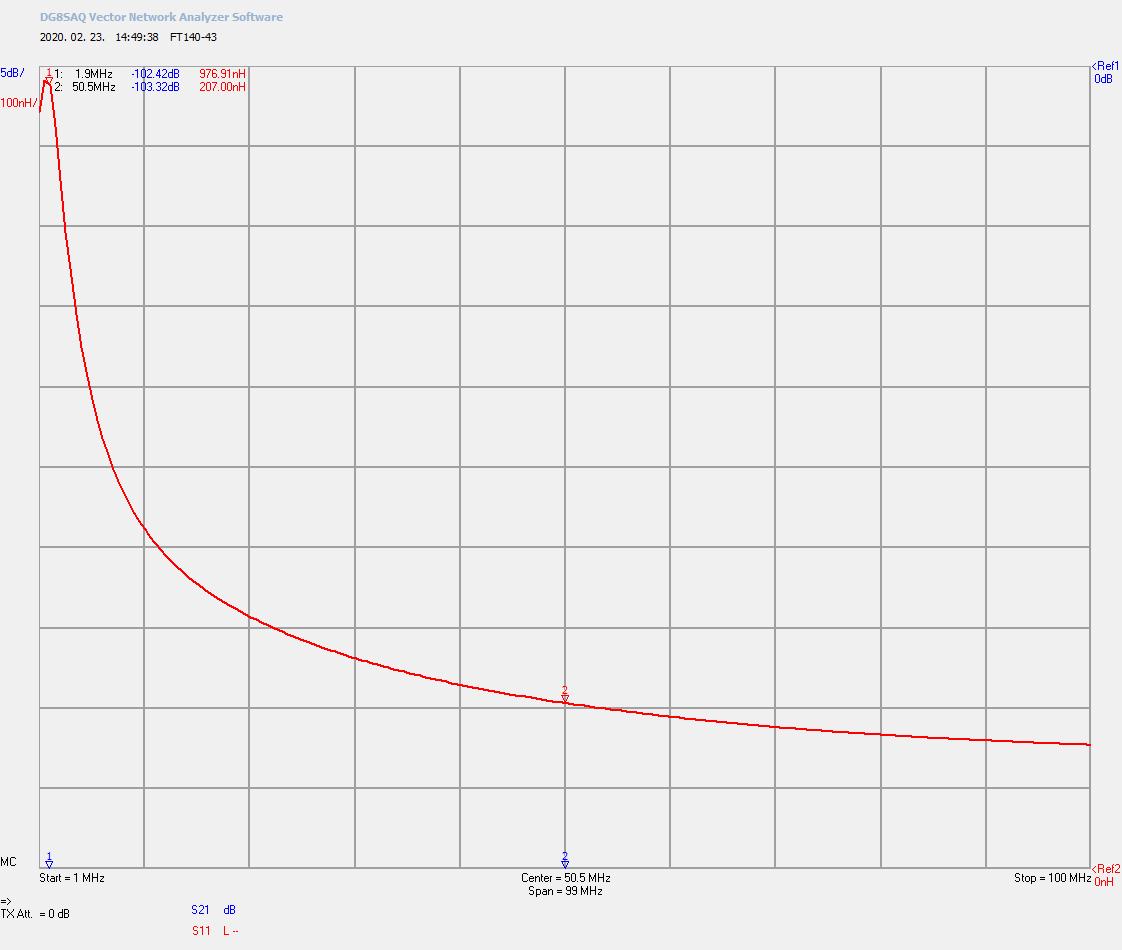

The Al-factor and 1 turn Z impedance FRQ charts of the ferrite core can be downloaded from the attached documents.

Physical Dimensions



OD(A) = 1.400 in / 35.55 mm +/- 0.75 mm
ID(B) = 0.900 in / 23.0 mm +/- 0.55 mm
Ht(C) = 0.500 in / 12.7 mm +/- 0.50 mm
 AL=885 +/- 20 %      uH=(AL*Turns2)/1000
Actual measured AL using 10 turns #28 wire
Temperature Stability (ppm /°C) = 12500
Color Code = shiny black
Application Freq Range
Wideband Transformers 5 - 400 MHz
Power Transformers 0.5 - 30 MHz
RFI Suppression 5 - 500 MHz
