AMIDON FB-31-1020 FERRITE BEADS

Join our community for interesting content

Model:	FB-31-1020
Nyíregyháza (HU):	3 pieces in stock
Budapest (HU):	9 pieces in stock
Add to my wishlist

For EU private customers:

VAT is recalculated to your local VAT, when you add your country through checkout menu.

Companies with EU VAT number:

We deduct the VAT on the invoice, please put your EU VAT number to the Note column when you process the order through checkout menu!

For NON EU customers:

We charge the NET price (exl VAT). Shipping and insurance varies by countries. Please ask for quotation! Paying import duty and tax is your own task, insurance is your own risk.

Buy Now Pay Later

Buy now and pay in 30 days with PastPay! For corporate clients only, in certain EU countries.

3.63 EUR (3.05 EUR + VAT)

Qty:pieces

Add to Cart

Description

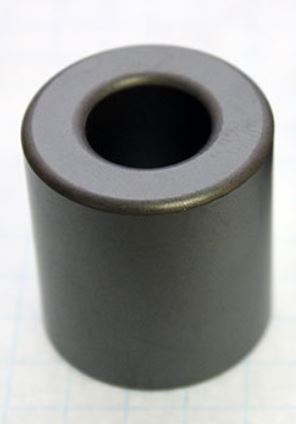

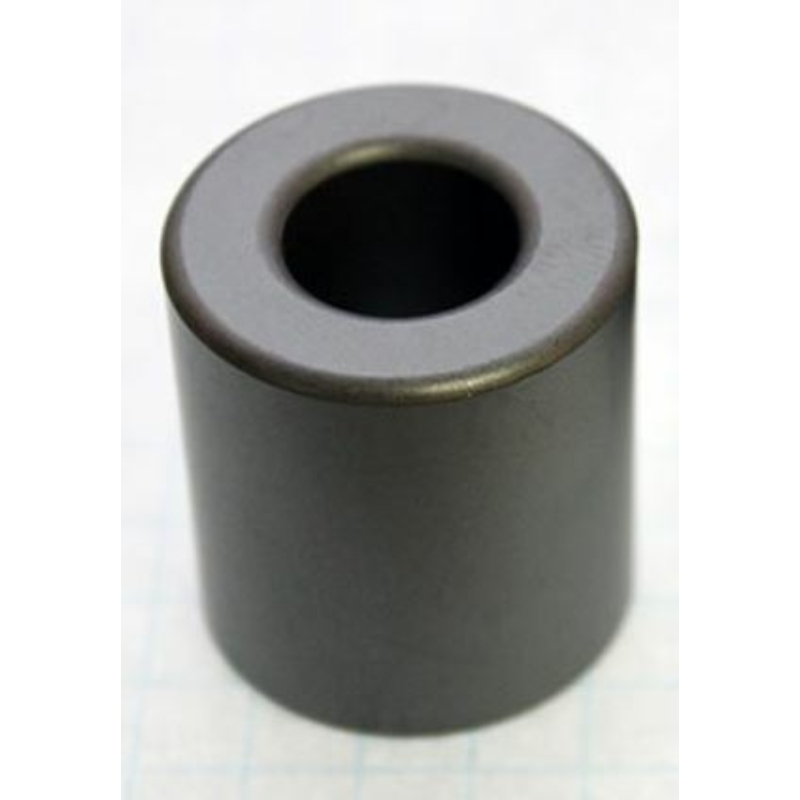

AMIDON FB-31-1020 FERRITE BEADS. Best for RF chokes. Al=5700. Due to large inner diameter, it is easily applicable on RG213, RG8 coax cables.

Physical Dimensions

OD(A) = 1.020 in / 25.90 mm +/- 0.75 mm
ID(B) = 0.505 in. / 12.80 mm +/- 0.25 mm
Ht(C) = 1.125 in. / 28.60 mm +/- 0.80 mm

A_L=5700 +/- 20 % uH=(A_L*Turns²)/1000
Actual measured AL using 10 turns #28 wire

Temperature Stability (ppm /°C) = 16000

Color Code = shiny black

Application Freq Range
RFI Suppression 1 - 300 MHz

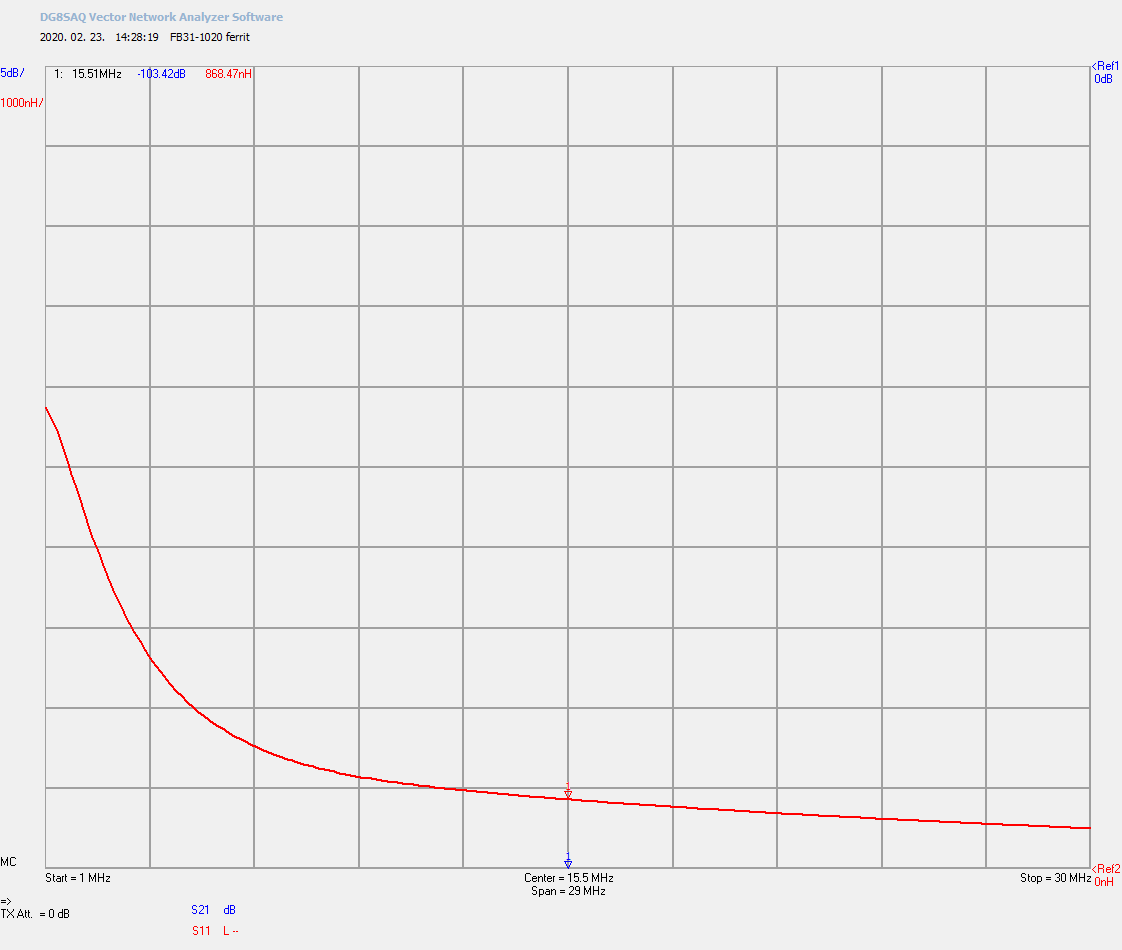

The Al-factor and 1 turn Z impedance FRQ charts of the ferrite core can be downloaded from the attached documents.

Weight	55 g
Material	MnZn (31)
Impedance	min 260 Ω @ 100 MHz ± 20%
RoHS compliant	yes

Attached documents

Al-factor_FRQ-chart_FB31-1020
