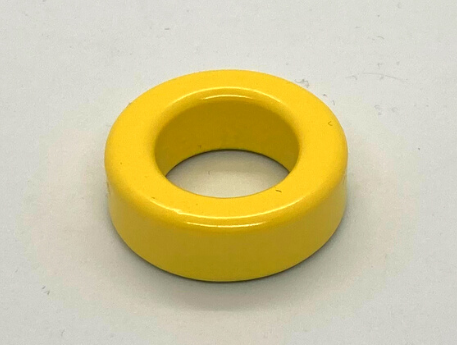

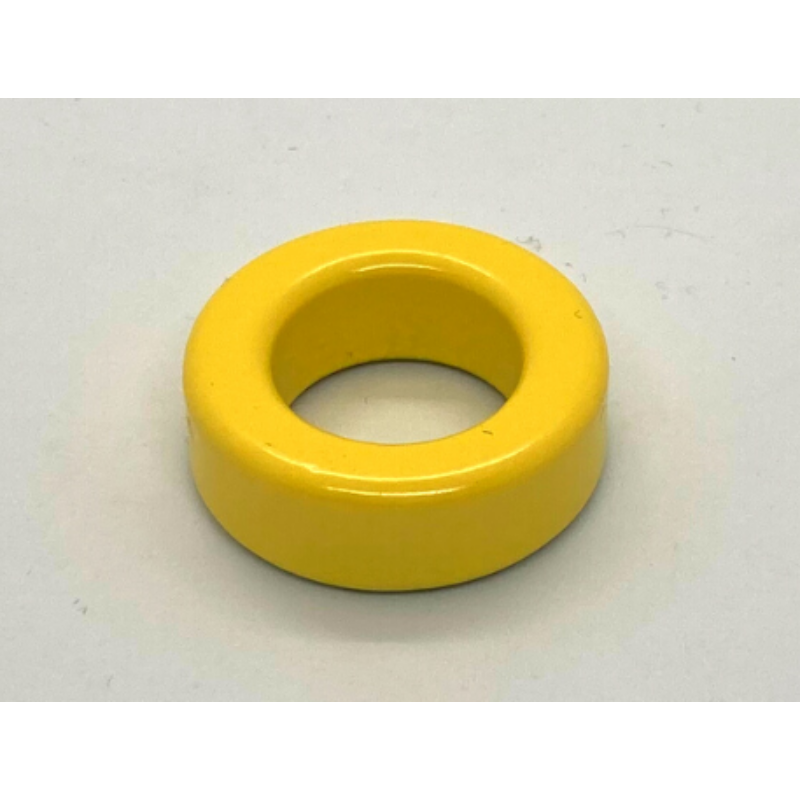

AMIDON T130-6 IRON POWDER TORROID

Join our community for interesting content

Model:	T130-6
Nyíregyháza (HU):	193 piece in stock
Budapest (HU):	12 piece in stock
Add to my wishlist

For EU private customers:

VAT is recalculated to your local VAT, when you add your country through checkout menu.

Companies with EU VAT number:

We deduct the VAT on the invoice, please put your EU VAT number to the Note column when you process the order through checkout menu!

For NON EU customers:

We charge the NET price (exl VAT). Shipping and insurance varies by countries. Please ask for quotation! Paying import duty and tax is your own task, insurance is your own risk.

Buy Now Pay Later

Buy now and pay in 30 days with PastPay! For corporate clients only, in certain EU countries.

2.82 EUR (2.37 EUR + VAT)

Qty:piece

Add to Cart

Description
Reviews

Description

Physical Dimensions

OD = 1.30 / 33.0 mm +/- 0.02 in
ID = .780 in / 19.8 mm +/- 0.02 in
Ht = .437 in / 11.1 mm +/- 0.025 in

A_L=9.6 +/- 5 % uH=(A_L*Turns²)/1000

Temperature Stability (ppm /°C) = 35

Color Code = Yellow / Clear

Optimum Resonant Circuit Range
for highest Q and lowest core loss
3 MHz - 40 MHz
